PVC Cable: Properties and Applications

What Are PVC Cables?

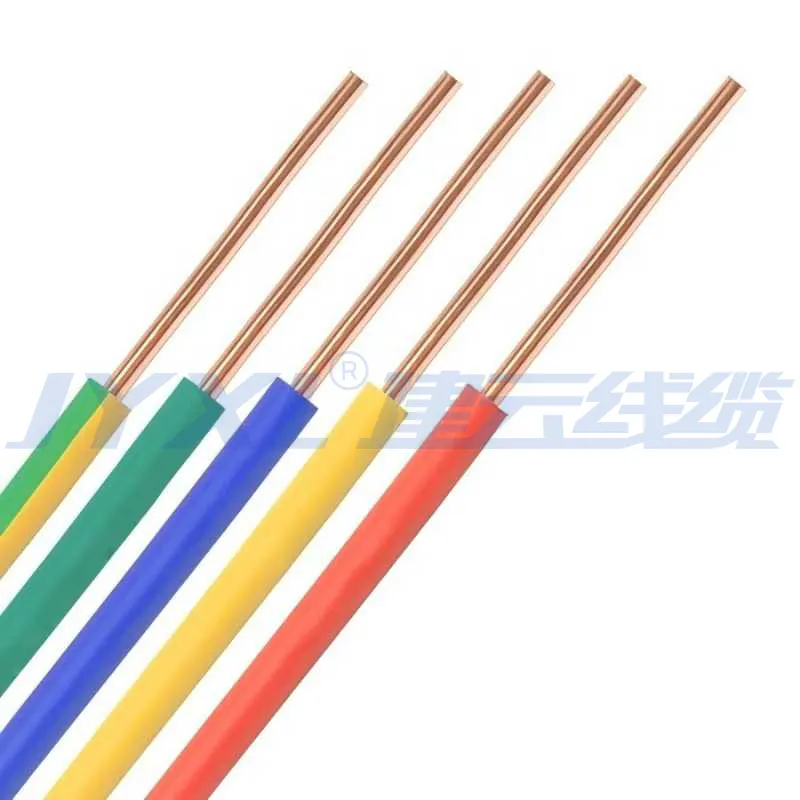

Polyvinyl chloride (PVC) cables are electrical conductors insulated or jacketed with PVC, a versatile thermoplastic polymer known for its affordability and durability. Used as both insulation and outer sheathing, PVC protects copper or aluminum conductors from environmental and mechanical damage while providing electrical insulation. PVC cables are widely employed in residential, commercial, and industrial applications due to their balance of performance and cost. Their properties make them a staple in electrical systems, as discussed in prior articles on cable jackets, PUR vs. PVC, solar cables, and household cables.

Key Properties of PVC Cables

PVC cables exhibit a range of physical and electrical properties that define their suitability for various applications:

• Temperature Range: Rated for -20°C to 105°C, PVC cables perform reliably in moderate climates but may become brittle in extreme cold or soften in high heat.
• Voltage Rating: Typically rated up to 600V for low-voltage applications, with some configurations supporting up to 1000V in specific setups.
• Flame Resistance: Inherently flame-retardant, PVC cables resist ignition and slow fire spread, making them suitable for enclosed spaces.
• Chemical Resistance: Resistant to oils, acids, and alkalis, PVC cables withstand moderate chemical exposure in industrial environments.
• Moisture Resistance: PVC provides good protection against moisture, suitable for damp or wet locations when properly sealed.
• Mechanical Strength: Offers moderate resistance to abrasion and impact, adequate for general-purpose wiring but less robust than materials like PUR or Neoprene.
• Flexibility: Moderately flexible, PVC cables are easier to handle than thermoset materials like XLPE but less flexible than PUR or TPE.

These properties position PVC cables as a versatile option for many electrical installations.

Advantages of PVC Cables

PVC cables offer several benefits that contribute to their widespread use:

• Cost-Effectiveness: PVC is inexpensive to produce, making these cables affordable for large-scale projects, as noted in discussions on household cables.
• Flame Resistance: Their ability to resist fire propagation enhances safety in buildings, similar to low-smoke zero-halogen cables.
• Environmental Resistance: Resistance to moisture, oils, and UV radiation (when UV-stabilized) ensures durability in outdoor or damp settings, akin to solar cables.
• Ease of Installation: Moderate flexibility and lightweight construction simplify handling and routing, comparable to automotive wires.
• Versatility: Available in various configurations (e.g., single-core, multi-core, shielded), PVC cables suit diverse applications, like multi-conductor cables.
• Recyclability: PVC can be recycled, offering an environmental advantage over some thermoset materials.

These advantages make PVC cables a practical choice for cost-sensitive and safety-conscious installations.

Limitations of PVC Cables

Despite their benefits, PVC cables have limitations that may affect their suitability:

• Temperature Constraints: Limited to 105°C, PVC cables are unsuitable for high-temperature environments where Silicone or PTFE is preferred, as discussed in high-temperature insulation articles.
• Cold Weather Brittleness: Below -20°C, PVC can become brittle, risking cracks in cold environments, unlike EPR or TPE cables.
• Chemical Exposure: While resistant to many chemicals, PVC degrades under prolonged exposure to strong solvents, unlike PTFE or PUR, as noted in PUR vs. PVC discussions.
• Smoke and Toxicity: In fires, PVC releases dense smoke and toxic hydrochloric acid, posing risks in confined spaces, unlike low-smoke zero-halogen cables.
• Mechanical Durability: Less resistant to abrasion and impact than PUR or Neoprene, making PVC less ideal for rugged applications like trailing cables.

These limitations necessitate careful consideration of environmental and safety requirements.

Applications of PVC Cables

PVC cables are used across various sectors, similar to applications of AWG, 6 AWG, automotive wires, and solar cables:

• Residential Wiring: Powers lighting, outlets, and appliances in homes, valued for flame resistance and cost, like household cables.
• Commercial Buildings: Supports electrical distribution, HVAC systems, and data centers, where flexibility and safety are key.
• Telecommunications: Used in telephone and data cables, providing reliable insulation for indoor and underground setups, similar to multi-pair cables.
• Automotive: Employed in low-voltage wiring for vehicles, resisting oils and vibrations, as discussed in automotive wire articles.
• Industrial: Powers control panels and machinery in factories, where moderate chemical resistance is sufficient, akin to multi-conductor cables.
• Portable Power: Used in extension cords and temporary setups, leveraging flexibility and durability, similar to welding cables.

These applications underscore PVC cables’ role in versatile, cost-effective electrical systems.

Summary of PVC Cable Characteristics

The table below summarizes the key characteristics of PVC cables, highlighting their properties and applications:

Tips for Selecting PVC Cables

Choosing PVC cables ensures performance and safety in appropriate applications:

• Assess Temperature Needs: Ensure operating conditions stay within -20°C to 105°C; for higher temperatures, consider Silicone or XLPE, as discussed in high-temperature insulation articles.
• Evaluate Environmental Exposure: Use UV-stabilized PVC for outdoor applications or moisture-resistant variants for damp locations, similar to solar cables.
• Consider Fire Safety: Select PVC cables for flame-retardant needs in buildings, but opt for low-smoke zero-halogen cables in confined spaces to reduce smoke and toxicity risks.
• Check Chemical Exposure: Confirm moderate chemical resistance suits the environment; for stronger solvents, choose PUR or PTFE, as noted in PUR vs. PVC discussions.
• Match Load Requirements: Select appropriate conductor sizes (e.g., 2 AWG for 115A, copper) using ampacity tables, as discussed in AWG and 2 AWG vs. 2/0 AWG articles.
• Consult Professionals: Engage electricians to verify sizing and installation, ensuring reliability, as with household or automotive cables.

These steps align with selecting reliable cables like TR-XLPE, automotive, or solar cables.

Conclusion

PVC cables, characterized by their affordability, flame resistance, and moderate environmental durability, are a cornerstone of electrical wiring in residential, commercial, industrial, and automotive applications. Their versatility, driven by properties like moisture and chemical resistance, makes them suitable for diverse environments, though limitations in extreme temperatures and high chemical exposure require careful consideration. By evaluating temperature, safety, and load requirements, users can leverage PVC cables for cost-effective and reliable performance, building on discussions of AWG, automotive wires, solar cables, cable jackets, and DLO vs. welding cables. Professional consultation enhances the effectiveness of PVC cable installations, supporting robust electrical systems across various sectors.
