Types of Solar Cables and Their Applications

What Are Solar Cables?

Solar cables, also known as photovoltaic (PV) cables, are specialized electrical conductors designed to transmit power within solar energy systems, connecting components such as solar panels, inverters, charge controllers, and batteries. Engineered to withstand harsh outdoor conditions, including UV radiation, extreme temperatures, moisture, and mechanical stress, solar cables typically feature copper or aluminum conductors with durable insulation like cross-linked polyethylene (XLPE) or polyvinyl chloride (PVC). Unlike general-purpose cables, solar cables are optimized for high-voltage direct current (DC) and alternating current (AC) transmission in PV systems, ensuring efficient energy transfer and safety. They comply with standards such as UL 4703, SAE J1128, ISO 6722, and NEC, aligning with requirements for renewable energy applications, similar to discussions on high-temperature insulation and H07RN-F cables.

Common Types of Solar Cables

Solar cables are categorized by their function, insulation, and conductor type, tailored to specific roles in PV systems. Below are the primary types, building on prior discussions of AWG, TR-XLPE, and automotive wires:

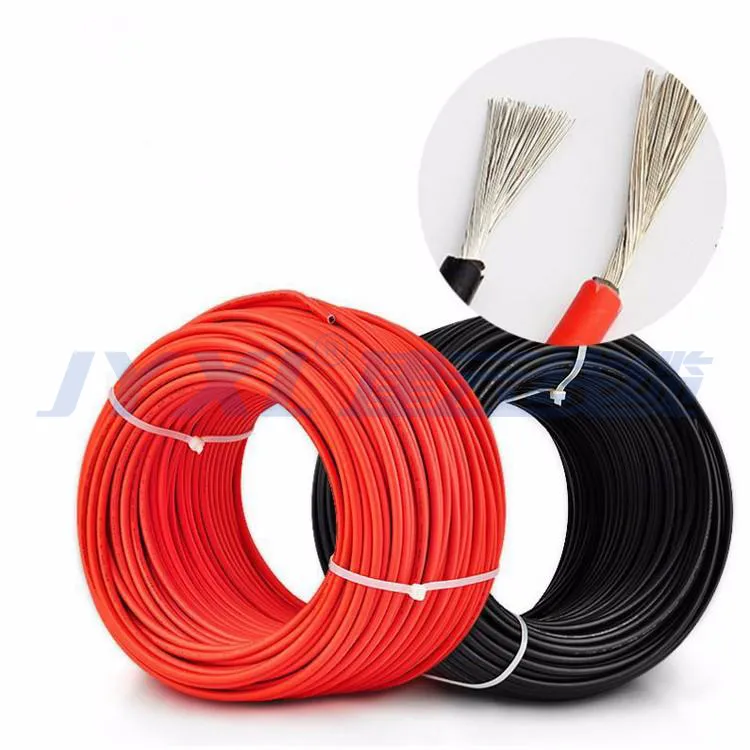

• DC Solar Cables: Single-core copper cables with XLPE insulation, rated -40°C to 90°C, used within solar panels as module or string cables. Pre-built with MC4 connectors, they connect panels in series or parallel, handling DC up to 2 kV. Common sizes include 4 mm², 6 mm², and 8 AWG, per UL 4703.
• DC Main Cables: Larger single- or twin-core cables (2 mm² to 8 mm²) that connect generator junction boxes to central inverters, transmitting high DC currents. Available in single-core (double-insulated) or twin-core configurations, they are UV- and moisture-resistant, suitable for outdoor use.
• AC Connection Cables: Multi-conductor cables (three- or five-core) with PVC or XLPE insulation, rated to 90°C, connecting inverters to the grid or distribution panels. Three-core cables suit single-phase inverters (live, neutral, ground), while five-core cables support three-phase inverters, per NEC standards.
• PV Wire: Single-conductor wire with XLPE insulation, rated 600V to 2 kV, and up to 150°C in dry conditions. Used for interconnections in grounded and ungrounded PV arrays, it is UV-, ozone-, and moisture-resistant, suitable for direct burial, per UL 4703.
• USE-2 Wire: Underground Service Entrance wire with XLPE insulation, rated 600V and 90°C in wet/dry conditions. Designed for grounded PV arrays, it is crush- and impact-resistant, used for direct burial, and dual-rated as RHW-2, per NEC.
• THHN Wire: Thermoplastic-insulated wire rated 600V and 90°C in dry conditions (75°C in wet). Used for indoor PV wiring, it requires UV-resistant conduit for outdoor use, unsuitable for direct burial or harsh conditions, per NEC.
• Armored Solar Cables: Tinned copper cables with XLPE insulation and a steel tape layer for mechanical protection, rated to 90°C. Used in installations prone to physical stress, such as industrial or large-scale solar farms.
• Aluminum Solar Cables: Lightweight aluminum conductors with double XLPE insulation, rated to 90°C, connecting panels to inverters or the grid. Cost-effective for long runs, they are less conductive than copper, per UL 4703.
• Twin-Core Solar Cables: Two insulated conductors in one sheath, rated to 90°C, used in small systems to connect panels to charge controllers. Flexible and UV-resistant, they simplify wiring in compact setups.
• MC4 Extension Cables: Pre-assembled cables with MC4 connectors, rated to 90°C, used to extend connections between panels and inverters. Available in lengths up to 100 m, they ensure secure, weatherproof connections.

Each type is designed for specific voltage, temperature, and environmental demands, aligning with standards like UL 4703 and ISO 6722.

Advantages of Solar Cables

Solar cables offer distinct benefits over general-purpose cables, enhancing PV system performance and safety:

• Environmental Resistance: XLPE insulation resists UV, moisture, ozone, and temperatures from -40°C to 150°C, ensuring durability in outdoor conditions, unlike PVC-insulated household cables.
• High Voltage Capacity: Rated up to 2 kV, solar cables handle high DC and AC loads, critical for efficient energy transfer in PV systems, similar to high-voltage automotive cables.
• Durability: Armored and double-insulated cables withstand mechanical stress and corrosion, offering a 25-year service life, akin to submarine or H07RN-F cables.
• Flexibility: Stranded copper conductors and twin-core designs provide flexibility for complex installations, similar to trailing or multi-conductor cables.
• Safety: Halogen-free and flame-retardant insulation (e.g., HFFR) minimizes toxic emissions and fire risks, aligning with LSOH cable standards.
• Efficiency: Low-resistance copper conductors and precise sizing (e.g., 4 mm², 6 mm²) reduce power loss, optimizing energy transfer, as discussed in AWG articles.

These advantages ensure reliable operation in demanding solar environments.

Applications of Solar Cables

Solar cables support diverse PV system functions, similar to applications of 6 AWG, TR-XLPE, or automotive wires:

• Residential: DC solar cables (4 mm², 6 mm²) and PV wire connect rooftop panels to inverters, powering homes, similar to household cables.
• Commercial: DC main cables and AC connection cables link solar arrays to grid systems in offices and warehouses, reducing energy costs.
• Industrial: Armored and aluminum solar cables support large-scale solar farms, handling high currents over long distances, akin to MV cables.
• Space: Specialized solar cables power satellites and spacecraft, requiring extreme temperature and radiation resistance, similar to high-temperature Teflon cables.
• Portable Systems: Twin-core and MC4 extension cables connect panels to charge controllers in RVs, camping, or off-grid setups, like automotive wiring.

These applications highlight the critical role of solar cables in renewable energy systems.

Comparison of Solar Cable Types

The table below compares common solar cable types, highlighting their properties:

Note: Specifications based on UL 4703, SAE J1128, ISO 6722, and NEC 2020. Verify with manufacturers for specific conditions.

Tips for Selecting Solar Cables

Choosing the right solar cable ensures performance, safety, and compliance:

• Match Current and Voltage: Use NEC or UL 4703 ampacity tables (e.g., 20A for 14 AWG, 55A for 6 AWG copper at 90°C) to select sizes like 4 mm² or 6 mm², preventing overheating, as discussed in AWG or 6 AWG articles.
• Consider Environmental Conditions: Choose XLPE-insulated cables (e.g., PV wire, DC solar cables) for UV and moisture resistance, or armored cables for mechanical stress, similar to H07RN-F or high-temperature cables.
• Minimize Voltage Drop: For runs over 50 ft, select larger gauges (e.g., 6 mm² vs. 4 mm²) to keep voltage drop below 3%, akin to RWU90 or MV cables. Use calculators: S = (ρ × L) / R, where ρ is resistivity (copper: 0.0172, aluminum: 0.0283).
• Ensure Connector Compatibility: Use MC4 connectors for DC solar cables and verify brand compatibility to avoid corrosion, per SAE J1128.
• Select Conductor Material: Prefer copper for high conductivity (59.6 MS/m) in short runs; use aluminum (37.2 MS/m) for cost-effective long runs, as in grounding or CCS discussions.
• Verify Standards: Confirm compliance with UL 4703, ISO 6722, or NEC for safety, as with TR-XLPE or RHW-2/RWU90 cables.
• Consult Professionals: Engage certified electricians for sizing, installation, and NEC compliance, ensuring reliability, as with household or automotive cables.

These steps align with selecting reliable cables like LSOH, cold temperature, or TR-XLPE.

Conclusion

Solar cables, including DC solar cables, DC main cables, AC connection cables, PV wire, USE-2 wire, THHN wire, armored cables, aluminum cables, twin-core cables, and MC4 extension cables, are essential for efficient and safe power transmission in photovoltaic systems. Their UV resistance, high voltage capacity, and durability ensure reliable performance in harsh conditions, surpassing general-purpose cables, as discussed in prior articles on AWG, high-temperature insulation, and automotive wires. By selecting the appropriate cable type, gauge, and insulation based on electrical and environmental requirements, users achieve optimal efficiency and safety, compliant with standards like UL 4703, SAE J1128, and NEC. Professional installation and adherence to manufacturer specifications further enhance the longevity and performance of solar energy systems, supporting the global transition to renewable energy.
