PVC Jacket Cable and Other Cable Jacket Types

What Are Cable Jackets?

Cable jackets are the outermost protective layers of wires and cables, designed to shield the inner conductors and insulation from mechanical damage, environmental factors, and chemical exposure. Unlike insulation, which prevents electrical leakage, jackets focus on physical and environmental protection, with minimal impact on electrical performance. Typically made from materials like polyvinyl chloride (PVC), polyurethane (PUR), or cross-linked polyethylene (XLPE), jackets enhance cable durability and safety in applications ranging from household wiring to industrial systems. Their importance is evident in harsh environments, as discussed in prior articles on automotive wires, solar cables, and H07RN-F cables. Cable jackets comply with standards such as UL 758, NEC, and ISO 6722, ensuring reliability across diverse conditions.

Common Types of Cable Jackets

Cable jackets are categorized by material, each offering unique properties for specific applications. Below are the primary types, building on discussions of PUR vs. PVC, TR-XLPE, and high-temperature insulation:

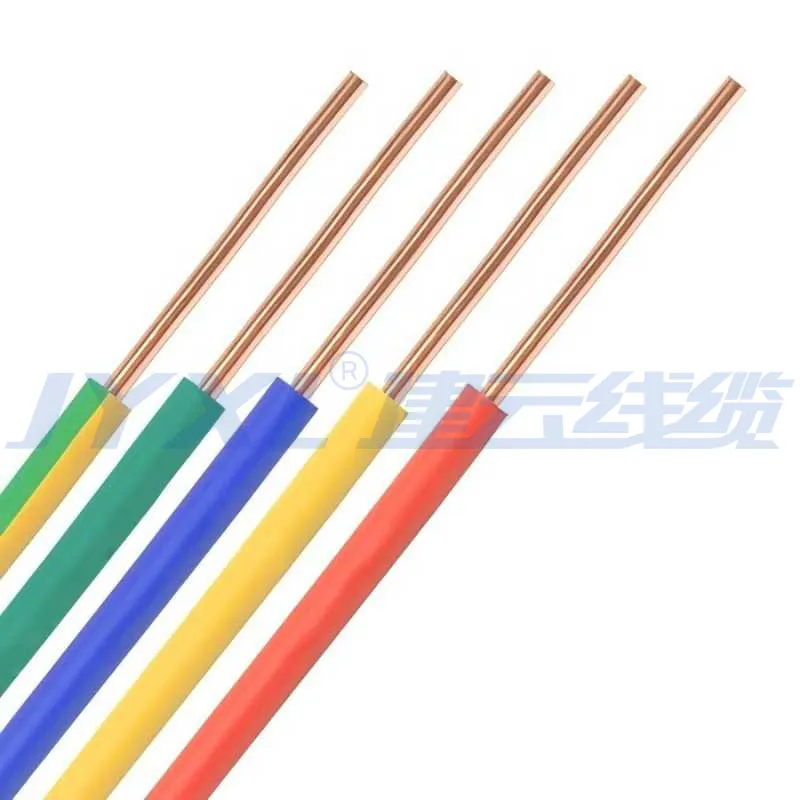

• Polyvinyl Chloride (PVC): A thermoplastic polymer, PVC is widely used for its cost-effectiveness and durability. Rated for -20°C to 105°C, it resists oils, acids, sunlight, and abrasion, making it ideal for direct burial and electronic cables. PVC is inherently flame-retardant, with NEC ratings like CM, CMR, and CMP for fire safety.
• Polyurethane (PUR): A halogen-free thermoplastic elastomer, PUR offers superior abrasion, oil, and ozone resistance, rated -40°C to 80°C. Its flexibility and “memory” properties suit retractile cords and robotics, though it has lower heat resistance than PVC.
• Cross-Linked Polyethylene (XLPE): A thermoset material, XLPE provides excellent thermal and chemical resistance, rated -40°C to 125°C. Used in high-voltage and fire-resistant cables, it is less flexible but ideal for demanding applications like solar and medium-voltage systems.
• Chlorinated Polyethylene (CPE): Available as thermoplastic or thermoset, CPE is rated -40°C to 90°C, offering heat, flame, and oil resistance. Thermoset CPE is more durable, suitable for outdoor and industrial cables.
• Neoprene: A synthetic rubber thermoset, Neoprene resists cold (-40°C), heat (90°C), oxidation, and sunlight, making it ideal for rugged environments like mine trailing cables. Its resilience prevents embrittlement.
• Ethylene Propylene Rubber (EPR): A thermoset rubber, EPR is rated -60°C to 90°C, with excellent heat, abrasion, and oxidation resistance. Flame-retardant when formulated, it suits cold and industrial environments.
• Thermoplastic Elastomer (TPE): Known for UV and oil resistance, TPE is flexible at low temperatures (-40°C to 80°C), suitable for medical and outdoor applications. It is less flame-resistant than PVC.
• Polyethylene (PE): A thermoplastic, PE is moisture- and weather-resistant, rated -40°C to 80°C, ideal for outdoor and direct burial cables. Chlorinated PE (CPE) enhances flame resistance.
• Silicone: A thermoset material, Silicone offers flexibility and extreme temperature resistance (-50°C to 200°C), with UV and ozone resistance, used in high-temperature applications.
• Fluorinated Ethylene Propylene (FEP): A fluoropolymer, FEP is rated -80°C to 200°C, with superior chemical and high-temperature resistance, used in plenum cables and specialized applications.
• Polytetrafluoroethylene (PTFE): A fluoropolymer, PTFE is chemically inert, rated -60°C to 260°C, ideal for extreme conditions like aerospace and chemical plants, similar to Teflon cables.

Each jacket type is designed for specific environmental and mechanical demands, per UL, NEC, and ISO standards.

Advantages of Cable Jackets

Cable jackets provide critical benefits, enhancing cable performance and longevity:

• Mechanical Protection: Jackets like PVC, PUR, and Neoprene resist abrasion, cuts, and impacts, protecting conductors in rugged environments, akin to H07RN-F or trailing cables.
• Environmental Resistance: Materials like XLPE, PE, and Silicone withstand UV, moisture, and extreme temperatures, ensuring durability outdoors, similar to solar cables.
• Chemical Resistance: PUR, PTFE, and CPE resist oils, solvents, and acids, ideal for industrial and chemical settings, as discussed in CCS and PUR vs. PVC articles.
• Flame Resistance: PVC, FEP, and EPR offer flame-retardant properties, with NEC ratings (e.g., CMP, LSZH) ensuring safety, aligning with LSOH standards.
• Flexibility: PUR, TPE, and Silicone provide flexibility for dynamic applications like robotics, similar to multi-conductor or automotive cables.
• Cost-Effectiveness: PVC and PE are affordable, balancing performance and cost, making them widely used, as noted in household cable discussions.

These advantages ensure cables operate reliably across diverse applications.

Applications of Cable Jackets

Cable jackets support a wide range of industries, similar to applications of automotive wires, solar cables, and 6 AWG cables:

• Residential and Commercial: PVC jackets (CM, CMR) are used for internal wiring, lighting, and power distribution, valued for fire safety and flexibility.
• Industrial: PUR, CPE, and Neoprene jackets protect cables in manufacturing, robotics, and mining, resisting abrasion and chemicals, akin to trailing cables.
• Telecommunications: PVC and PE jackets ensure reliable data transmission in underground and aerial setups, similar to multi-pair cables.
• Power Distribution: XLPE and EPR jackets support high-voltage and medium-voltage grids, offering thermal and environmental resistance, like MV cables.
• Renewable Energy: XLPE and TPE jackets in solar cables withstand UV and moisture, ensuring durability in PV systems, as discussed in solar cable articles.
• Automotive: PUR and PVC jackets protect wiring in vehicles, resisting oils and vibrations, similar to automotive wires.
• Aerospace and Marine: PTFE and Silicone jackets handle extreme temperatures and corrosion, akin to high-temperature Teflon cables.

These applications highlight the critical role of jackets in cable reliability.

Comparison of Cable Jacket Types

The table below compares common cable jacket types, highlighting their properties:

Note: Specifications based on UL 758, NEC 2020, and ISO 6722. Verify with manufacturers for specific conditions.

Tips for Selecting Cable Jackets

Choosing the right cable jacket ensures performance, safety, and compliance:

• Assess Environmental Conditions: Select UV-resistant jackets (e.g., PE, TPE) for outdoor use or high-temperature jackets (e.g., Silicone, PTFE) for extreme heat, similar to solar or high-temperature cables.
• Evaluate Mechanical Stress: Choose abrasion-resistant jackets (e.g., PUR, Neoprene) for dynamic or rugged applications, akin to trailing or automotive cables.
• Consider Chemical Exposure: Use PUR, PTFE, or CPE for oil, solvent, or acid resistance, as discussed in PUR vs. PVC or CCS articles.
• Ensure Fire Safety: Select flame-retardant jackets (e.g., PVC-CMP, FEP) for plenum or confined spaces, per NEC ratings, aligning with LSOH standards.
• Match Flexibility Needs: Opt for flexible jackets (e.g., PUR, TPE) for robotics or tight spaces, similar to multi-conductor or robotics cables.
• Verify Standards: Confirm compliance with UL 758, NEC, or ISO 6722, as with TR-XLPE or RHW-2/RWU90 cables.
• Consult Professionals: Engage engineers for material selection and NEC-compliant installation, ensuring reliability, as with household or solar cables.

These steps align with selecting reliable cables like LSOH, automotive, or solar cables.

Conclusion

Cable jackets, including PVC, PUR, XLPE, CPE, Neoprene, EPR, TPE, PE, Silicone, FEP, and PTFE, are critical for protecting cables from mechanical, environmental, and chemical stresses. Their diverse properties, such as flame resistance, flexibility, and durability, ensure reliable performance across residential, industrial, telecommunications, and renewable energy applications, surpassing unprotected cables, as discussed in prior articles on AWG, automotive wires, and solar cables. By selecting the appropriate jacket material based on environmental, mechanical, and regulatory requirements, users achieve safety and efficiency, compliant with standards like UL 758, NEC, and ISO 6722. Professional consultation and adherence to manufacturer specifications further enhance cable longevity and performance, supporting robust electrical systems in various industries.
