What Is AWG?

The American Wire Gauge (AWG) is a standardized system for measuring the diameter of electrically conducting wires, primarily used in the United States and Canada. Developed in the 19th century, AWG assigns a numerical designation to wire sizes, with smaller numbers indicating larger diameters and greater current-carrying capacity. AWG applies to both solid and stranded wires, typically made of copper or aluminum, and is critical for selecting wires in applications like those discussed previously, such as 6 AWG, RHW-2, RWU90, and TR-XLPE cables. AWG sizes range from 0000 (4/0, approximately 11.68 mm diameter) to 40 (0.079 mm diameter), with each size defined by its cross-sectional area and electrical properties. Compliance with standards like NEC, UL 83, and CSA ensures safe and efficient wire selection for residential, commercial, and industrial uses.

The AWG System Explained

The AWG system is logarithmic, with wire diameter decreasing as the gauge number increases. Key aspects include:

• Size Progression: Each AWG size is approximately 26% smaller in cross-sectional area than the previous size (e.g., 12 AWG is larger than 14 AWG). The diameter halves every six gauges (e.g., 10 AWG to 16 AWG).
• Current Capacity: Larger wires (lower AWG numbers) carry more current due to lower resistance. For example, 6 AWG copper at 90°C carries 65A, while 14 AWG carries 20A, per NEC tables.
• Resistance: Resistance increases with smaller wires (higher AWG numbers). For copper, 6 AWG has 0.403 Ω/km, while 14 AWG has 2.525 Ω/km at 20°C.

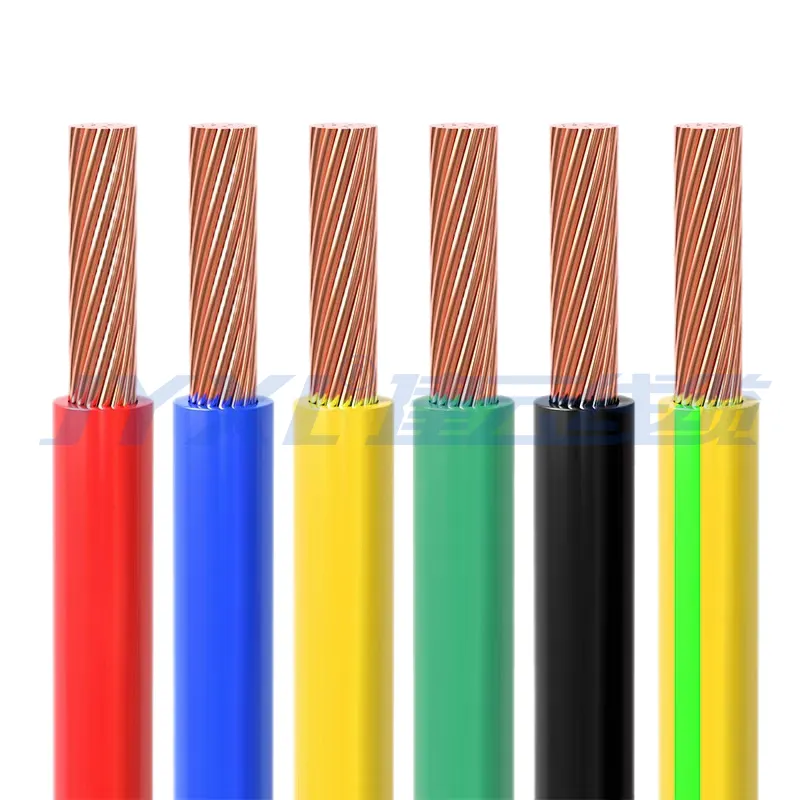

• Conductor Types: AWG applies to solid (single conductor) and stranded (multiple strands) wires, with stranded wires offering greater flexibility, as seen in RHW-2 or H07RN-F cables.
• Standards: AWG sizes align with NEC, UL 83, and ASTM B258 for consistent sizing and performance, ensuring compatibility with insulation like TR-XLPE or PTFE.

The AWG system simplifies wire selection by correlating size to electrical and mechanical properties, critical for applications discussed in prior articles.

Factors for Choosing AWG Wire

Selecting the appropriate AWG wire requires evaluating several factors to ensure safety and performance:

• Current Load: Match wire size to the load per NEC ampacity tables (e.g., 40A for 8 AWG copper at 90°C), preventing overheating, as with 6 AWG or RHW-2 cables.
• Voltage Drop: For long runs (>50 ft), calculate voltage drop (typically <3% for power circuits) to ensure efficiency. Larger wires (e.g., 10 AWG vs. 12 AWG) reduce drop, similar to MV or RWU90 applications.
• Environment: Consider temperature, moisture, and chemical exposure. High-temperature insulation (e.g., PTFE, TR-XLPE) for 150°C+ environments or moisture-resistant types (e.g., RWU90) for wet locations.
• Installation Type: Conduit, direct burial, or exposed installations affect wire choice. Stranded wires (e.g., 6 AWG stranded) are flexible for conduits, while solid wires suit fixed installations, as in THHN or household cables.
• Conductor Material: Copper (59.6 MS/m conductivity) offers lower resistance than aluminum (37.2 MS/m), impacting AWG size selection for high-current needs, as seen in CCS or grounding wires.
• Cost: Larger wires (lower AWG) are costlier but reduce energy loss. Balance cost with performance, as with TR-XLPE or H07RN-F cables.

These factors ensure AWG wires meet application-specific requirements, aligning with prior discussions on cable selection.

Applications of AWG Wires

AWG wires are used across diverse applications, leveraging their standardized sizing, similar to 6 AWG, RHW-2, or high-temperature cables:

• Residential: 14 AWG and 12 AWG wires power lighting and outlets, while 6 AWG serves heavy appliances, similar to THHN or household cables.
• Commercial: 10 AWG to 2 AWG wires support HVAC, lighting, and equipment, often with TR-XLPE or RHW-2 insulation for durability.
• Industrial: 8 AWG to 4/0 AWG wires power motors, welding machines, and control systems, using high-temperature insulation like PTFE or mica, akin to trailing or MV cables.
• Renewable Energy: 6 AWG to 2 AWG wires connect solar panels and wind turbines, leveraging RWU90 or TR-XLPE for low dielectric loss and environmental resistance.
• Automotive and Aerospace: 18 AWG to 12 AWG wires with silicone or PTFE insulation power engines and avionics, similar to Teflon or H07RN-F cables.

The AWG system’s versatility supports reliable performance across these sectors.

Common AWG Sizes Comparison

The table below compares common AWG sizes for copper wires, highlighting key properties:

Note: Ampacity based on NEC 2020 for copper at 90°C in conduit. Verify with NEC or electrician for specific conditions.

Tips for Selecting AWG Wire

Choosing the right AWG wire ensures safety, efficiency, and compliance:

• Determine Load Requirements: Use NEC ampacity tables to match wire size to current (e.g., 65A for 6 AWG copper at 90°C), similar to RHW-2 or 6 AWG cables.
• Calculate Voltage Drop: For runs over 50 ft, select larger AWG sizes (e.g., 10 AWG vs. 12 AWG) to keep voltage drop below 3%, as with MV or RWU90 cables.
• Match Insulation to Environment: Choose TR-XLPE for underground, PTFE for high temperatures, or silicone for flexibility, akin to H07RN-F or high-temperature cables.
• Select Conductor Type: Use stranded copper for flexibility in conduits or solid for fixed installations, as discussed in grounding or THHN applications.
• Verify Standards: Ensure compliance with NEC, UL 83, or CSA for safety, similar to TR-XLPE or RHW-2/RWU90 cables.
• Consider Future Needs: Oversize wires (e.g., 10 AWG instead of 12 AWG) for potential load increases, balancing cost and scalability.
• Consult Professionals: Engage electricians for NEC-compliant sizing, installation, and grounding, ensuring reliability, as with household or H07RN-F cables.

These steps align with selecting reliable cables like LSOH, cold temperature, or TR-XLPE.

Conclusion

The American Wire Gauge (AWG) system provides a standardized, reliable method for selecting wires based on diameter, current capacity, and resistance, critical for applications from residential wiring to industrial and renewable energy systems. By understanding AWG sizes and factors like load, voltage drop, and environmental conditions, users can choose wires that ensure safety and efficiency. Common sizes like 14 AWG to 6 AWG, paired with insulation like TR-XLPE, PTFE, or silicone, support diverse needs, building on the reliability of cables like RHW-2, RWU90, and H07RN-F discussed previously. Proper selection, guided by NEC standards and professional expertise, ensures optimal performance and longevity in electrical installations.
