Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.

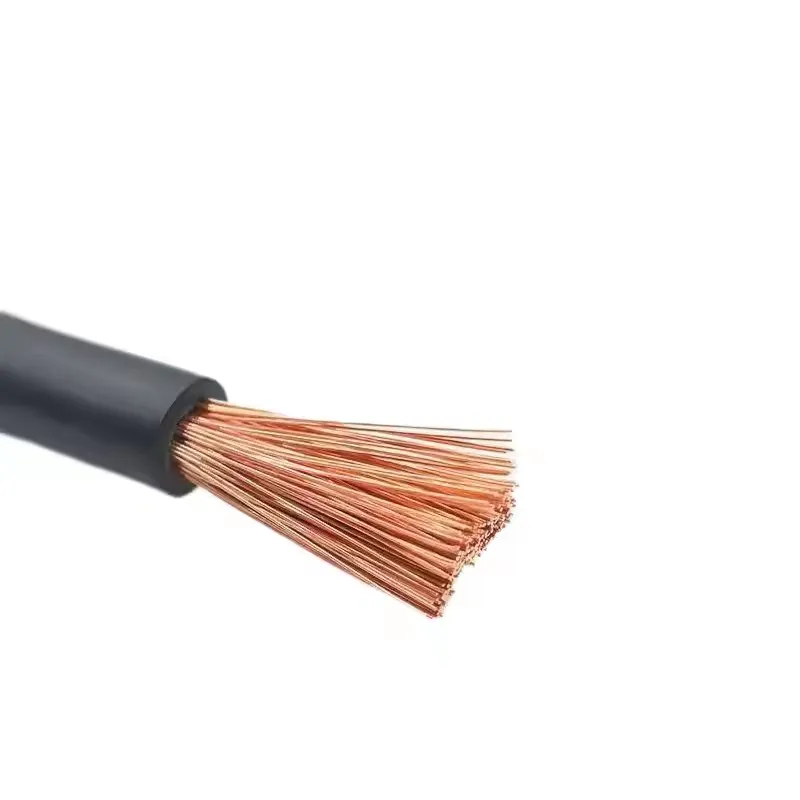

Home / Product / Low Voltage Power Cable / YHF Copper Rubber Welding Cable
The rated voltage is 0.2kV, and the highest voltage of the DC ripple system should not exceed 1kV. Working temperature The long-term allowable maximum working temperature of cable conductor is 60ºC.
| Attribute | Value |
|---|---|
| Insulation Material | PE |
| Application | Power Distribution, Construction, Home Appliance, Industrial, Underground, Power Station |
| Conductor Material | Copper |
| Jacket | PVC |
| Place of Origin | Henan, China |
| Brand Name | JianYun |
| Model Number | YHF |
| Type | LOW VOLTAGE |
| Size | 1*16 |
| Application | Welding machines |
| Product name | YHF |
| Conductor | Tinned Copper |
| Color | Orange |
| Insulation | XLPE PE PVC |
| Certificate | CCC |
| Size | 1*16 |
| Core | Single Core |
| Rated voltage | 0.6/1KV |
| MOQ | 1000 |
|
Model
|
Name |
Main applications |
Working temperature of core ≤0C |
|
YH |
Natural Rubber Sheath for Welding Cable |
Always used indoor |
65 |
|
YHF |
Neoprene Rubber Sheath Welding Cable |
Always used outdoor |
65 |
|
Synthetic elastomer Sheath Welding Cable |
|
Conductor Nominal Section (mm2) |
Conductive Core |
Thickness of Section Sheath (mm) |
Average Outer Diameter (mm2) |
20oC Conductor Resistance≤(Ω/km) |
Reference Weight(kg/km) |
||
|
Number/Diameter of Core(mm) |
Min |
Max |
YH |
YHF |
|||
|
10 |
322/0.20 |
1.8 |
7.5 |
9.7 |
1.91 |
146 |
153 |
|
16 |
513/0.20 |
2.0 |
9.2 |
11.5 |
1.16 |
218 |
230 |
|
25 |
798/0.20 |
2.0 |
10.5 |
13.0 |
0.758 |
316 |
331 |
|
35 |
1121/0.20 |
2.0 |
11.5 |
14.5 |
0.536 |
426 |
439 |
|
50 |
1596/0.20 |
2.2 |
13.5 |
17.0 |
0.379 |
592 |
610 |
|
70 |
2214/0.20 |
2.4 |
15.0 |
19.5 |
0.268 |
790 |
817 |
|
95 |
2997/0.20 |
2.6 |
17.0 |
22.0 |
0.198 |
1066 |
1102 |
|
120 |
1702/0.30 |
2.8 |
19.0 |
24.0 |
0.161 |
1348 |
1392 |
|
150 |
2135/0.30 |
3.0 |
21.0 |
27.0 |
0.129 |
1678 |
1698 |
|
185 |
1443/0.40 |
3.2 |
22.0 |
29.0 |
0.106 |
1983 |
2020 |
