Low voltage power cables are used to transmit electrical power at voltages typically up to 1,000 volts (1 kV). These cables are widely used in residential, commercial, and industrial settings for a variety of applications, including power distribution, lighting, and control systems.
Home / Product / Low Voltage Power Cable / 50mm Single Core Copper Power Cable

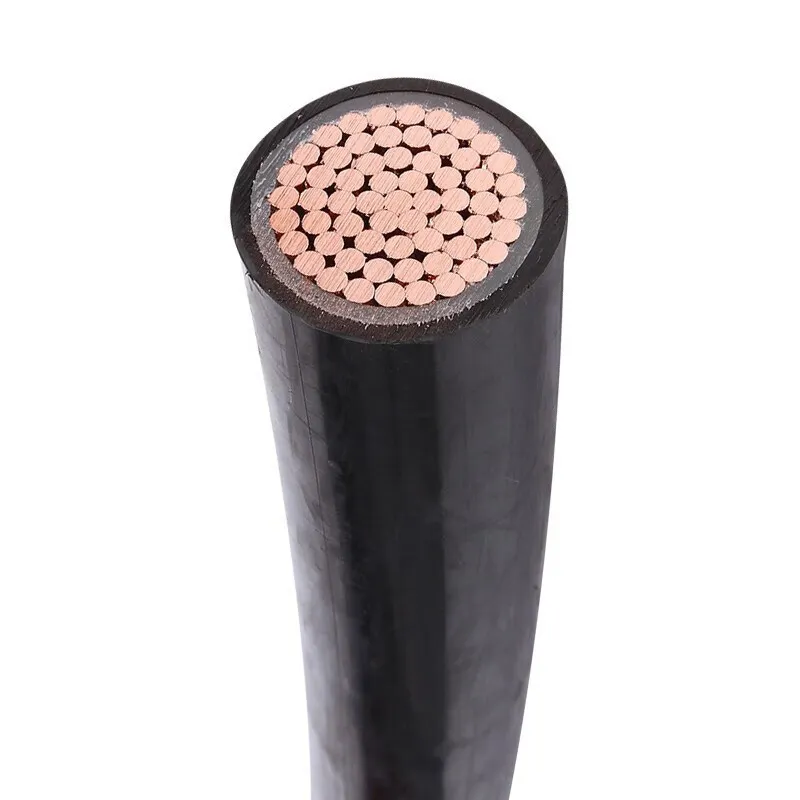

High-Quality Insulation: This 600/1000V XLPE insulated PVC sheath 1Core 50mm Copper Cable features high-quality XLPE insulation, ensuring reliable and long-lasting performance in various industrial applications.
Durable Construction: With a pure copper conductor and a robust PVC jacket, this cable is designed to withstand harsh environmental conditions and heavy usage, making it an ideal choice for demanding industrial settings.
Compliant with International Standards: This cable meets the standards of GB12706 and IEC60502, ensuring compliance with international safety and quality regulations, providing peace of mind for customers.
Suitable for Power Transmission: This cable is specifically designed for power transmission applications, making it a reliable choice for electrical engineers and technicians working on various projects.
User-Friendly Packaging: This cable is packaged in a wooden drum, making it easy to transport and store, and reducing the risk of damage during shipping and handling.
| Attribute | Value |
|---|---|
| Insulation Material | xlpe |
| Application | Industrial |
| Conductor Material | Copper |
| Jacket | PVC |
| Place of Origin | Henan, China |
| Working Temperature | 90°C, 70°C |
| Rated Voltage | 0.6 kV, 1 kV |
| Rated Current | 16A, 30A |
| Brand Name | JianYun |
| Model Number | YJV |
| Type | LOW VOLTAGE |
| Size | 1 CORE |
| Product name | 600/1000V XLPE insulated PVC sheath 1Core 50mm Copper Cable |
| Standard | GB12706, IEC60502 |
| Conductor | Pure Copper |
| Voltage | 0.6/1kV |
| Color | Black |
| Insulation | XLPE |
| Certificate | CCC |
| Core | 1 CORE |
| Application | Power Transmission |
| Package | Wooden Durm |
|
Nominal Cross Section
|
Diameter of Conductor (Approx.)
|
Nominal Insulation Thickness
|
Nominal PVC Sheath Thickness
|
Overall Diameter (Approx.)
|
Weight of Cable (Approx.)
|
|
mm2
|
mm
|
mm
|
mm
|
mm
|
Kg/Km
|
|
1x1.5
|
1.6
|
0.7
|
1.4
|
6
|
50
|
|
1x2.5
|
2
|
0.7
|
1.4
|
6.5
|
70
|
|
1x4
|
2.6
|
0.7
|
1.4
|
7
|
80
|
|
1x6
|
3.1
|
0.7
|
1.4
|
7.5
|
110
|
|
1x10
|
4
|
0.7
|
1.4
|
8.5
|
150
|
|
1x16
|
5
|
0.7
|
1.4
|
9.5
|
215
|
|
1x25
|
6.3
|
0.9
|
1.4
|
11.5
|
315
|
|
1x35
|
7.4
|
0.9
|
1.4
|
12
|
415
|
|
1x50
|
8.8
|
1
|
1.4
|
13
|
555
|
|
1x70
|
10.6
|
1.1
|
1.4
|
15
|
760
|
|
1x95
|
12.4
|
1.1
|
1.5
|
17
|
1025
|
|
1x120
|
14
|
1.2
|
1.5
|
18.5
|
1270
|
|
1x150
|
15.5
|
1.4
|
1.6
|
21.5
|
1575
|
|
1x185
|
17.4
|
1.6
|
1.6
|
23
|
1955
|
|
1x240
|
20.3
|
1.7
|
1.7
|
26
|
2470
|
|
1x300
|
22.7
|
1.8
|
1.8
|
28
|
3155
|
|
1x400
|
25.4
|
2
|
1.9
|
32
|
4049
|
|
1x500
|
28.8
|
2.2
|
2
|
36
|
5100
|
|
1x630
|
30.4
|
2.4
|
2.2
|
40
|
6410
|
