What Is a Thermoplastic Insulated Cable?

What Is a Thermoplastic Insulated Cable?

Thermoplastic insulated cables are electrical cables with insulation made from thermoplastic materials, which soften when heated and harden when cooled, allowing them to be reshaped or recycled without altering their core properties. Typically featuring a copper or aluminum conductor coated with materials like polyvinyl chloride (PVC), polyethylene (PE), or thermoplastic elastomer (TPE), these cables are used for power distribution, signal transmission, and data communication. Their linear or branched molecular structure enables flexibility, cost-effectiveness, and ease of processing, distinguishing them from thermoset insulated cables, which form permanent cross-linked structures after curing. Widely used in residential, commercial, and industrial settings, thermoplastic insulated cables are versatile, akin to TPI or TPS cables discussed previously, and comply with standards like UL, CSA, and AS/NZS for safety and reliability.

Properties of Thermoplastic Insulation

Thermoplastic insulation is characterized by its unique physical and chemical properties, making it suitable for diverse applications:

• Reversibility: Softens when heated and hardens when cooled, allowing remolding or recycling without structural damage, unlike thermoset materials.
• Flexibility: Offers good elasticity, ideal for applications requiring bending or movement, such as in robotics or automotive wiring.
• Electrical Insulation: Provides excellent dielectric properties, with materials like PE offering low dielectric constants for minimal signal loss.
• Mechanical Strength: Resists abrasion and impact, though less durable than thermosets in extreme conditions.
• Temperature Range: Varies by material (e.g., PVC up to 70°C, Teflon up to 260°C), generally lower than thermosets like XLPE (90°C).
• Environmental Resistance: Offers resistance to moisture, UV rays, and chemicals (e.g., Teflon’s corrosion resistance), though performance depends on the material.
• Cost-Effectiveness: Lower production costs due to ease of processing via extrusion, injection molding, or blow molding.

These properties align with the versatility of materials like PVC or TPE, as seen in discussions of PUR vs. PVC or TPI cables.

Types of Thermoplastic Insulated Cables

Thermoplastic insulated cables come in various forms, each tailored to specific applications:

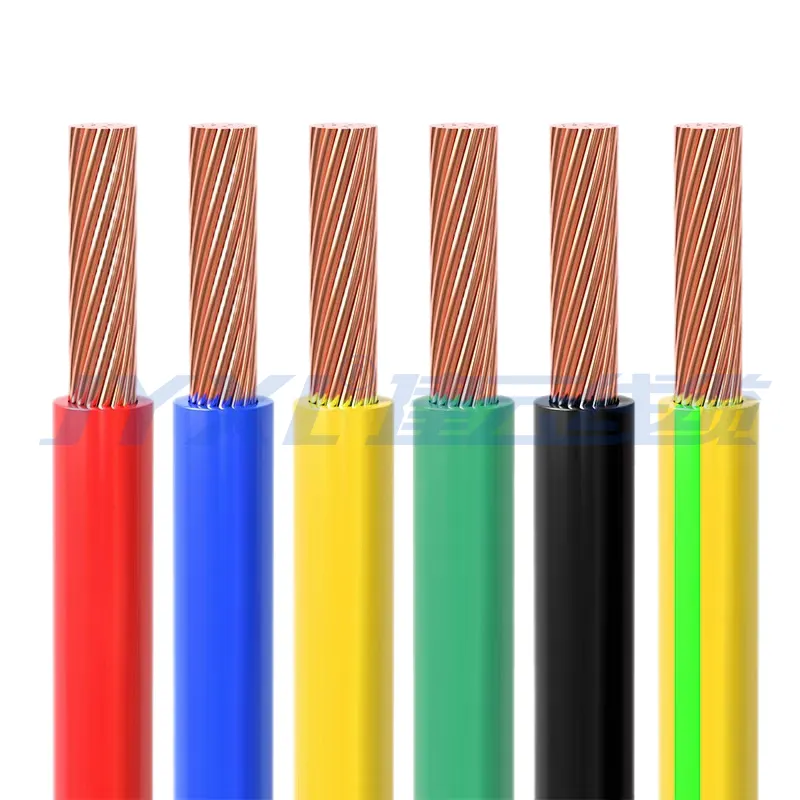

• Polyvinyl Chloride (PVC) Cables: Cost-effective, flame-retardant, and moisture-resistant, rated up to 1 kV and 70°C. Used in household wiring, control circuits, and low-voltage applications. Available in single-core or multi-core (e.g., TPS cables).

• Polyethylene (PE) Cables: Excellent dielectric properties and low-temperature resistance, rated up to 70°C. Common in transmission lines and underground systems, similar to MV cable insulation.
• Teflon (PTFE, FEP, PFA) Cables: High-temperature (up to 260°C) and corrosion-resistant, ideal for aerospace, medical, and high-frequency applications. Comparable to Teflon cables discussed for heat resistance.
• Thermoplastic Elastomer (TPE) Cables: Combines rubber-like elasticity with plastic processability, offering flexibility and recyclability. Used in medical devices, consumer electronics, and charging cables.
• Polyurethane (TPU) Cables: High wear resistance and flexibility, suited for outdoor applications like mining or automation, akin to PUR cables’ durability.
• Nylon-Coated Cables (e.g., THHN): Features PVC insulation with a nylon jacket, rated up to 90°C, used in building wiring for heat and moisture resistance.

These types cater to needs ranging from general-purpose wiring to specialized environments, similar to the diversity of multi-conductor or submarine cables.

Advantages and Disadvantages

Thermoplastic insulated cables offer several benefits but also have limitations:

• Advantages:
  • Ease of Processing: Can be extruded, molded, or recycled, reducing manufacturing costs.
  • Flexibility: Suitable for dynamic applications like robotics or automotive wiring.
  • Recyclability: Environmentally friendly, with materials like TPE and PVC supporting sustainability.
  • Cost-Effectiveness: Lower material and production costs compared to thermosets.
  • Good Electrical Properties: High dielectric strength and low signal loss, ideal for data transmission.
  • Color-Coding: Easily identifiable during installation, enhancing safety.
• Disadvantages:
  • Limited High-Temperature Stability: Most (e.g., PVC) degrade above 70°C, unlike thermosets (90°C+).
  • Lower Mechanical Strength: Less durable in harsh environments compared to thermosets like XLPE.
  • Fire Safety Concerns: PVC emits toxic fumes when burned, requiring LSOH alternatives in public spaces.
  • Environmental Impact: Petroleum-based production contributes to resource depletion, though recycling mitigates this.

These trade-offs mirror discussions of LSOH vs. PVC or Teflon’s specialized applications.

Applications of Thermoplastic Insulated Cables

Thermoplastic insulated cables are used across various sectors due to their versatility:

• Residential and Commercial Wiring: PVC and TPS cables power lighting, outlets, and appliances, supporting voltages up to 750V.
• Automotive: TPU and PVC cables form wiring harnesses, offering flexibility and chemical resistance.
• Electronics and Communications: TPI and TPE cables enable data transmission in high-humidity or high-temperature environments, like telecom systems.
• Aerospace and Medical: Teflon and FEP cables provide high-temperature and corrosion resistance for critical systems.
• Industrial: TPU and nylon-coated cables (e.g., THHN) support machinery and control systems, resisting abrasion and moisture.
• Outdoor and Temporary Power: PE and TPE cables withstand UV rays and moisture for underground or solar installations.

These applications highlight their adaptability, akin to multi-conductor or custom cables in specialized settings.

Thermoplastic vs. Thermoset Insulation Comparison Table

Choosing between thermoplastic and thermoset insulation depends on project requirements. The table below compares their key attributes:

Note: Consult NEC, AS/NZS, or IEC standards for project-specific requirements.

Tips for Choosing Thermoplastic Insulated Cables

Selecting the right thermoplastic insulated cable requires careful planning:

• Match Application Needs: Use PVC or TPS for residential wiring, Teflon for high-temperature aerospace, or TPE for flexible electronics.
• Assess Environmental Conditions: Choose PE for underground moisture resistance or TPU for outdoor abrasion resistance, similar to PUR’s durability.
• Check Temperature Ratings: Ensure the cable (e.g., PVC at 70°C, Teflon at 260°C) matches operating conditions to avoid degradation.
• Verify Voltage and Current: Select cables rated for the system (e.g., 600V for THHN, 1 kV for PVC) and appropriate AWG sizes (e.g., 6 AWG for high-current appliances).
• Prioritize Safety: Use LSOH cables in public spaces to minimize toxic fumes, as with LSOH discussions.
• Ensure Compliance: Confirm adherence to UL, CSA, AS/NZS, or RoHS standards for safety and environmental impact.
• Consult Professionals: Engage licensed electricians to validate cable selection and installation, ensuring compliance with local codes like AS/NZS 3000.

These steps ensure performance and safety, similar to selecting submarine or multi-pair cables.

Conclusion

Thermoplastic insulated cables, with materials like PVC, PE, Teflon, TPE, and TPU, are essential for modern electrical systems, offering flexibility, recyclability, and cost-effectiveness. Their reversible molecular structure enables easy processing and adaptability for applications ranging from household wiring to aerospace systems. While they excel in residential, automotive, and electronics settings, limitations like lower high-temperature stability and potential toxic fumes from PVC require careful selection, often favoring LSOH or thermoset alternatives like XLPE for demanding environments. By choosing the appropriate type, verifying environmental and electrical requirements, and consulting professionals, users can ensure safe, reliable performance, building on the versatility of cables like THHN, TPS, or custom designs discussed previously.
