Overview of Solar PV Cables

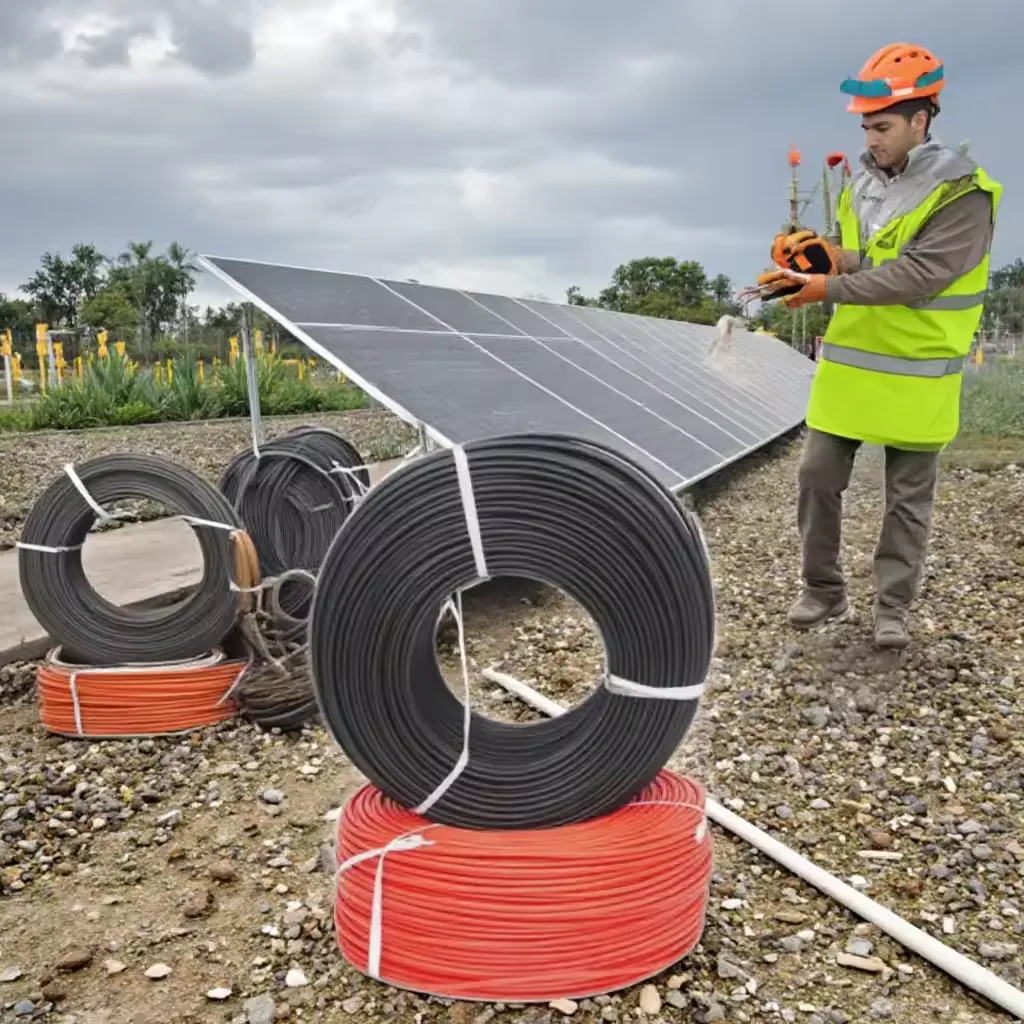

Solar photovoltaic (PV) cables are specialized electrical conductors designed to connect solar panels, inverters, batteries, and charge controllers in photovoltaic systems, transmitting direct current (DC) power generated from sunlight. Unlike standard electrical cables, solar PV cables are engineered to withstand harsh outdoor conditions, including UV radiation, extreme temperatures, and mechanical stress, ensuring efficiency, safety, and longevity for up to 25–30 years. This article outlines the critical technical specifications to consider when purchasing solar PV cables, drawing on industry practices and the expertise of manufacturers like Jianyun Cable Co., based in Luoyang, China, known for its comprehensive solar cable portfolio, as discussed in prior articles on power cables, cable cross-sections, and rubber cables.

Key Technical Specifications

Selecting solar PV cables requires evaluating several technical specifications to ensure compatibility and performance:

• Voltage Rating: The maximum voltage the cable can safely handle, typically 600V, 1000V, or 2000V DC, matching the PV system’s voltage requirements to prevent overheating or failure.
• Current Carrying Capacity: The maximum current (amperes) the cable can carry, determined by conductor size and material, to avoid thermal overload, as explored in cross-section calculations.
• Temperature Resistance: The cable’s ability to operate at high temperatures (e.g., 90°C in wet conditions, up to 150°C in dry) without degradation, critical for outdoor solar applications.
• UV and Weather Resistance: Insulation must resist ultraviolet (UV) radiation, moisture, and ozone to maintain integrity in sunlight-exposed environments.
• Conductor Material: Copper or aluminum, impacting conductivity, weight, and cost, as discussed in conductor cable articles.
• Insulation and Sheathing: Materials like cross-linked polyethylene (XLPE) or ethylene propylene rubber (EPR) provide durability and environmental protection.
• Flexibility and Bend Radius: Cables must be flexible for easy routing, with a minimum bend radius to prevent damage during installation.
• Fire Safety: Low smoke, zero-halogen (LSZH) properties enhance safety by reducing toxic emissions in case of fire.
• Durability: Resistance to abrasion, chemicals, and mechanical stress ensures long-term reliability in harsh conditions.

These specifications ensure solar PV cables meet the unique demands of photovoltaic systems.

Conductor Material

The conductor material significantly affects the performance and cost of solar PV cables:

• Copper Conductors: Offer high conductivity, low resistance, and corrosion resistance, ideal for efficient power transfer in residential or high-voltage systems. Copper is heavier and costlier but supports smaller cross-sections for the same current, as seen in cable cross-section examples.
• Aluminum Conductors: Lightweight and more cost-effective, suitable for large-scale solar farms where budget and weight are concerns. Aluminum requires larger cross-sections due to lower conductivity and is prone to oxidation, necessitating robust insulation.

Stranded conductors enhance flexibility compared to solid conductors, facilitating installation in complex PV arrays, as discussed in installation standards articles.

Insulation and Sheathing

Insulation and sheathing materials protect solar PV cables from environmental and electrical stresses:

• Cross-Linked Polyethylene (XLPE): Common in PV cables, XLPE offers high temperature resistance (up to 90°C wet, 150°C dry), UV resistance, and durability against moisture and chemicals, ideal for outdoor use, as in rubber cables.
• Ethylene Propylene Rubber (EPR): Provides flexibility and abrasion resistance, suitable for dynamic or harsh installations, similar to rubber power cables discussed previously.
• Low Smoke Zero Halogen (LSZH): Used in safety-critical applications, LSZH minimizes toxic emissions during fires, aligning with fire-resistant cable properties.
• Polyvinyl Chloride (PVC): Less common in PV cables due to lower UV and temperature resistance but used in specific indoor applications.

High-quality insulation ensures long-term performance, typically 25–30 years, in solar environments.

Cable Sizing and Length

Proper cable sizing and length are critical to minimize power losses and ensure safety:

• Cross-Sectional Area: Determined by current load and voltage drop, typically ranging from 2.5 mm² to 16 mm² (e.g., 4 mm² or 6 mm² for standard PV systems). Larger cross-sections reduce resistance and voltage drop, as detailed in cross-section calculation articles.
• Voltage Drop: Limited to 2–3% for DC circuits to maintain system efficiency. Longer runs require thicker cables to compensate for increased resistance.
• Length: Minimize cable length to reduce voltage drop and material costs, typically keeping runs under 50–100 meters, with thicker cables for longer distances.
• Gauge (AWG): Common sizes include 10 AWG (6 mm²) or 12 AWG (4 mm²), selected based on current and distance, as discussed in AWG articles.

Jianyun Cable’s Solar PV Solutions

Jianyun Cable Co. offers a robust range of solar PV cables tailored for photovoltaic systems:

• PV1-F Solar Cables: Single-conductor cables with XLPE insulation, rated 600/1000V DC, ideal for connecting solar panels to inverters, similar to industry-standard PV cables.
• Direct Burial PV Cables: Thicker XLPE insulation for underground installations, resistant to moisture and soil acidity, suitable for solar farms.
• Flexible PV Cables: Stranded copper conductors with EPR insulation for dynamic or portable solar systems, offering high flexibility, as in rubber cable applications.
• LSZH PV Cables: Fire-safe cables for residential or commercial installations, minimizing smoke and halogen emissions, akin to fire-resistant cables.
• Custom PV Cables: Tailored cross-sections (2.5–16 mm²) and lengths for specific voltage, current, or environmental needs, as discussed in custom cable articles.

Jianyun’s cables are designed for durability and efficiency in solar applications, supporting global renewable energy projects.

Summary of Specifications

The table below summarizes key technical specifications for solar PV cables:

Tips for Selecting PV Cables

To choose the right solar PV cables, consider the following tips:

• Match System Requirements: Ensure voltage and current ratings align with the PV system’s specifications, as in PV1-F or RW90 cables.
• Prioritize Environmental Resistance: Select UV, moisture, and temperature-resistant cables like XLPE-insulated types for outdoor use, as discussed in rubber cable articles.
• Calculate Proper Sizing: Use cross-section formulas to account for current, length, and voltage drop, selecting 4 mm² or 6 mm² for standard systems, as in cross-section guides.
• Choose Quality Materials: Opt for copper for efficiency or aluminum for cost savings, with robust insulation like XLPE or LSZH, as in conductor cable discussions.
• Ensure Flexibility: Use stranded conductors for complex installations, facilitating routing, as seen in installation standards articles.
• Plan for Longevity: Select cables with a 25–30-year lifespan, supported by durable insulation and regular maintenance, as in solar farm applications.
• Consult Professionals: Engage engineers or manufacturers like Jianyun to verify cable suitability and installation practices, ensuring reliability.

These tips align with selecting effective cables like TR-XLPE or fire-resistant cables.

Conclusion

Selecting the right solar PV cables is critical for ensuring the safety, efficiency, and longevity of photovoltaic systems, requiring careful consideration of technical specifications such as voltage rating, current capacity, conductor material, insulation type, and environmental resistance. By choosing cables with appropriate sizing, durable materials, and flexibility, buyers can optimize power transmission and withstand harsh outdoor conditions. Jianyun Cable Co., based in Luoyang, China, offers a diverse range of solar PV cables, including PV1-F, direct burial, and LSZH variants, tailored to meet global solar energy demands. Building on discussions of power cables, cable cross-sections, and installation standards, strategic cable selection, professional consultation, and adherence to system requirements enhance the reliability of solar installations, supporting the growth of renewable energy infrastructure.
