Tech Guide: How to Calculate the Right Cable Cross-Section: Formulas and Examples

Overview of Cable Cross-Section Calculation

Selecting the correct cable cross-section is critical for ensuring safe and efficient power transmission in electrical systems. The cross-sectional area of a cable’s conductor determines its ability to carry current without overheating, maintain voltage stability, and withstand environmental conditions. Incorrect sizing can lead to overheating, energy losses, or system failures. This technical guide provides formulas and examples for calculating cable cross-section, drawing on industry practices and the expertise of manufacturers like Jianyun Cable Co., based in Luoyang, China, known for its robust power cable portfolio, as discussed in prior articles on AWG, power/control cables, and installation standards.

Key Factors in Cross-Section Selection

Several factors influence the choice of cable cross-section:

• Current Load (Ampacity): The maximum current the cable must carry, measured in amperes (A), dictates the conductor size to prevent overheating, as explored in AWG discussions.
• Voltage Drop: The reduction in voltage over the cable length must be minimized to ensure equipment performance, particularly for long runs.
• Conductor Material: Copper offers higher conductivity than aluminum, requiring a smaller cross-section for the same current, as detailed in conductor cable articles.
• Ambient Temperature: Higher temperatures reduce a cable’s current-carrying capacity, necessitating larger cross-sections, especially for XLPE-insulated cables.
• Installation Method: Cables in conduits, trays, or direct burial have different heat dissipation rates, affecting sizing, as discussed in installation standards articles.
• Cable Length: Longer cables increase resistance and voltage drop, requiring larger cross-sections to maintain performance.
• Environmental Conditions: Exposure to moisture, UV, or chemicals may require specific insulation or larger sizes for durability, as in rubber or fire-resistant cables.

These factors ensure the cable meets electrical and environmental demands.

Formulas for Cross-Section Calculation

Calculating the cable cross-section involves two primary considerations: ampacity and voltage drop. Below are the key formulas, presented in a generalized form:

• Cross-Section for Ampacity: Ensures the cable can carry the required current without overheating.
  A = (I × √t) / (k × √(θ - θ₀))
  Where:
  • A: Cross-sectional area (mm²)
  • I: Current load (A)
  • t: Time duration of current flow (seconds, typically for short-circuit conditions)
  • k: Conductor material constant (e.g., 115 for copper, 76 for aluminum)
  • θ: Maximum allowable conductor temperature (°C, e.g., 90 for XLPE)
  • θ₀: Ambient temperature (°C, typically 30)
  For steady-state conditions, refer to ampacity tables or simplified calculations based on load.
• Cross-Section for Voltage Drop: Ensures voltage remains within acceptable limits (e.g., 3–5% drop).
  A = (2 × I × L × ρ) / (V_d × V)
  Where:
  • A: Cross-sectional area (mm²)
  • I: Current load (A)
  • L: Cable length (m)
  • ρ: Resistivity of conductor (Ω·mm²/m, e.g., 0.0172 for copper, 0.0283 for aluminum)
  • V_d: Allowable voltage drop (V, e.g., 3% of system voltage)
  • V: System voltage (V)
• Correction Factors: Adjust cross-section for ambient temperature, installation method, or grouping:
  • Temperature correction: Increase cross-section if ambient temperature exceeds 30°C (e.g., multiply by 0.87 for 40°C).
  • Grouping correction: Increase cross-section if multiple cables are bundled, reducing heat dissipation (e.g., multiply by 0.80 for 3 cables).

Always select the larger cross-section from ampacity or voltage drop calculations to ensure safety and performance.

Practical Examples

Below are two examples illustrating cable cross-section calculations for different scenarios:

Jianyun Cable’s Power Cable Solutions

Jianyun Cable Co. offers a wide range of power cables to meet diverse cross-sectional requirements:

• Low Voltage Power Cables: Copper or aluminum conductors (0.5–400 mm²) with XLPE or PVC insulation, ideal for industrial or commercial wiring, similar to RW90.

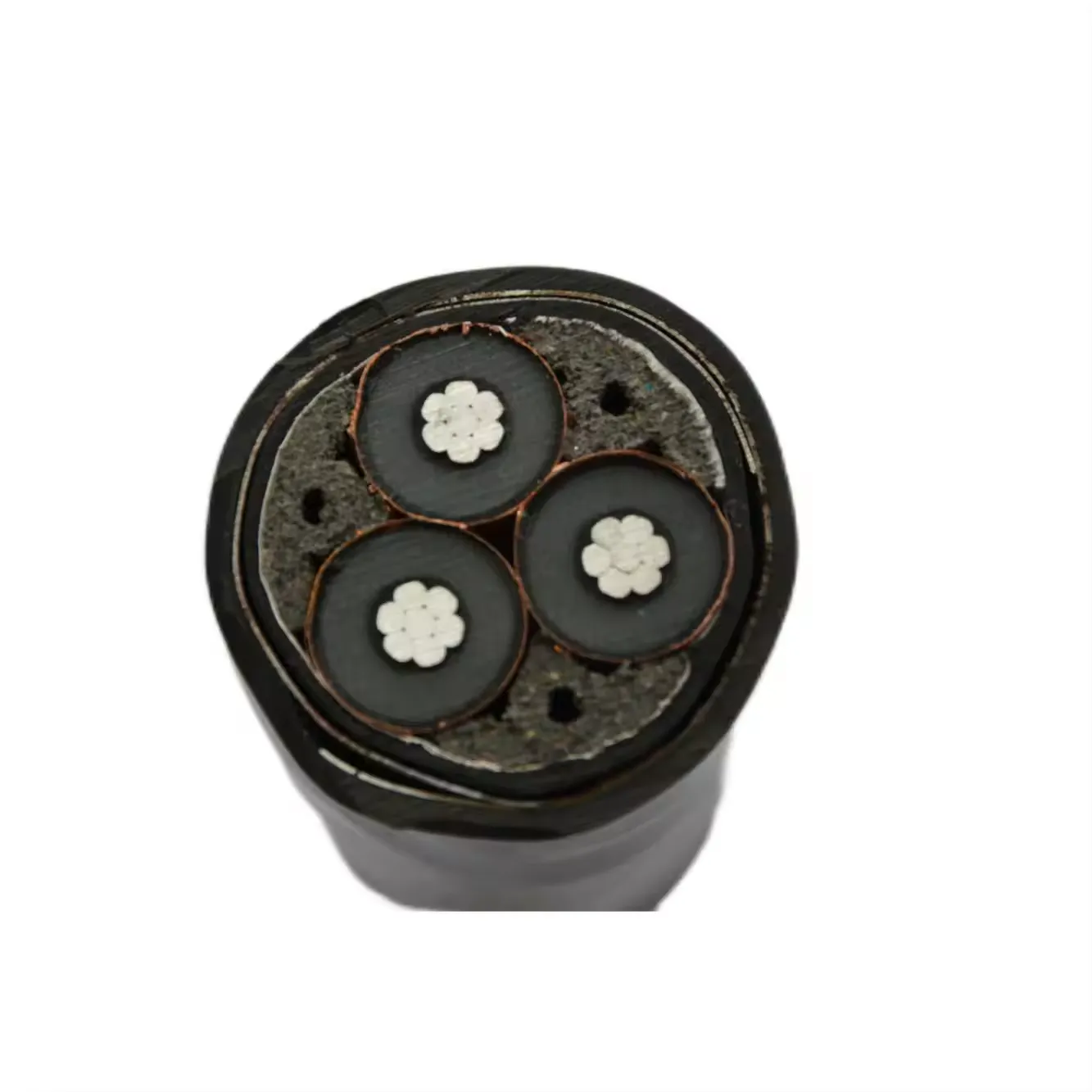

• Medium Voltage Power Cables: XLPE-insulated cables (10–630 mm²) for distribution networks, akin to TR-XLPE or RWU90.
• High Voltage Power Cables: Large cross-section cables (up to 2500 mm²) for long-distance transmission, ensuring minimal voltage drop.
• Armored Power Cables: Steel-armored cables for rugged installations, available in various sizes, as discussed in armored cable articles.
• Fire-Resistant Power Cables: LSZH or mica tape cables for safety-critical applications, as explored in fire-resistant cable discussions.
• Rubber Power Cables: Flexible cables for dynamic applications, with cross-sections tailored to load, as detailed in rubber cable articles.

Jianyun’s cables are engineered to support accurate sizing for optimal performance.

Additional Considerations

Beyond calculations, consider the following for accurate cable sizing:

• Short-Circuit Capacity: Ensure the cross-section can withstand short-circuit currents, using the ampacity formula with appropriate time duration.
• Future Expansion: Select a slightly larger cross-section to accommodate potential load increases, particularly for industrial applications.
• Insulation Type: XLPE supports higher temperatures than PVC, allowing smaller cross-sections for the same load, as in TR-XLPE cables.
• Regulatory Compliance: Verify that the selected size meets safety and performance expectations for the target market, as discussed in exported power cable articles, without specifying standards.
• Cost Efficiency: Balance copper’s higher conductivity with aluminum’s lower cost, as explored in conductor cable discussions.

These considerations enhance the reliability and efficiency of cable selection.

Summary of Calculation Methods

The table below summarizes key methods for calculating cable cross-section:

Tips for Accurate Cable Sizing

To ensure precise cable cross-section selection, consider the following tips:

• Verify Load Requirements: Accurately measure current and voltage demands to avoid undersizing, as in RW90 or TR-XLPE applications.
• Account for Distance: Calculate voltage drop for long runs, selecting larger cross-sections as needed, particularly for high-voltage cables.
• Check Environmental Conditions: Adjust for temperature or installation method, using rubber or XLPE cables for harsh environments, as discussed in rubber cable articles.
• Consult Manufacturer Data: Use Jianyun’s cable specifications to confirm ampacity and cross-section suitability for specific applications.
• Engage Professionals: Collaborate with engineers to validate calculations, ensuring safety and compliance, as in installation standards discussions.
• Use Standard Sizes: Select the nearest standard cross-section (e.g., 10 mm², 16 mm²) to simplify procurement and installation.
• Plan for Contingencies: Include a safety margin in calculations to accommodate unexpected load increases or environmental changes.

These tips align with selecting effective cables like fire-resistant or armored cables.

Conclusion

Calculating the correct cable cross-section is essential for ensuring safe, efficient, and reliable power transmission, requiring consideration of current load, voltage drop, and environmental factors. Using formulas for ampacity and voltage drop, along with practical examples, buyers can select the appropriate conductor size for their applications. Jianyun Cable Co., based in Luoyang, China, offers a comprehensive range of power cables, from low to high voltage, with cross-sections tailored to diverse needs, supporting accurate sizing and performance. By verifying load requirements, consulting professionals, and applying correction factors, users can optimize cable selection, building on discussions of AWG, power/control cables, and installation standards. Strategic sizing enhances the longevity and safety of electrical systems, reinforcing the critical role of power cables in modern infrastructure.
