Low voltage power cables—rated up to 1 kV (0.6/1 kV)—form the foundation of modern electrical distribution in residential, commercial, industrial, and data center environments. Understanding their construction, typical uses, and the standards that govern their design and installation is essential for ensuring safety, efficiency, and reliability. This guide outlines key definitions, cable types, application scenarios, and relevant international and national standards, followed by best practices for installation, testing, and maintenance.
Low voltage power cables are designed for systems operating at up to 1 kV. They consist of one or more conductors (copper or aluminum), surrounded by insulation layers and protective sheaths. In many installations, armouring is added to protect against mechanical damage. Advances in cable technology now allow integration of power, control, and communication functions within a single infrastructure, improving efficiency and reducing installation complexity.
Proper selection and installation of low voltage cables are critical to controlling energy losses, preventing overheating, and meeting safety requirements. Cables must be chosen based on load current, environmental conditions, and regulatory standards to ensure long-term performance and minimize maintenance.
In electrical engineering, “low voltage” generally refers to circuits operating from 50 V up to 1 kV. According to IEC 60038, low voltage is defined as voltages not exceeding 1 kV between conductors and 1.5 kV to earth.
Common categories include:
Low voltage cables are rated for continuous operation at 0.6/1 kV under normal and fault conditions. Their insulation and construction must withstand expected thermal, mechanical, and environmental stresses.

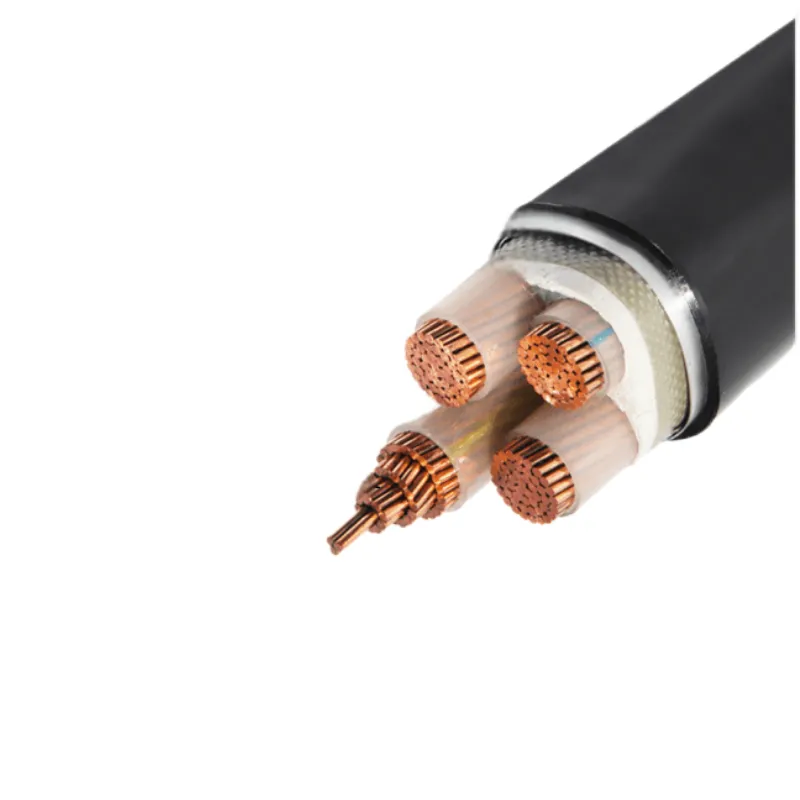

Conductors are most often made from stranded copper or aluminum. Copper offers superior conductivity and mechanical strength, whereas aluminum is lighter and more cost-effective. Stranding improves flexibility and reduces the skin effect at higher frequencies compared to solid conductors.
Common insulation materials include:
Mechanical protection may be provided by steel wire armor (SWA) or steel tape armor (STA) for underground or industrial installations. Outer sheaths—made from PVC, low-smoke zero-halogen (LSZH) compounds, or polyethylene—guard against moisture, UV exposure, chemicals, and abrasion.
In residential, commercial, and industrial buildings, low voltage power cables distribute electricity from switchboards or distribution panels to lighting, socket outlets, HVAC equipment, and small motors. Armoured cables (e.g., 3-core SWA) are typically used for incoming mains feeds, while unarmoured multicore cables (e.g., 3-core PVC) serve downstream subcircuits.
Data centers rely on flexible copper conductors with LSZH jackets to power servers, UPS units, power distribution units (PDUs), and cooling systems. Cable management within containment aisles requires flame-retardant characteristics and careful routing to minimize airflow obstruction.
In factories and processing plants, low voltage cables supply motors, pumps, control panels, and instrumentation. Armoured cables are preferred in cable trays, floor ducts, and hazardous areas to resist mechanical damage, oils, chemicals, and high heat.
Solar photovoltaic (PV) arrays and small-wind turbine systems use low voltage cables (up to 1 kV) to connect modules, inverters, and combiner boxes before stepping up to medium voltage. These cables require UV-resistant jackets, tolerance to temperature extremes, and often halogen-free compounds for fire safety within inverter enclosures.
Low voltage wiring for security cameras, access control, fire alarms, and building automation typically operates at 12 V, 24 V, or 48 V. Technologies like Power over Ethernet (PoE) allow power and data to share one cable. Shielded instrumentation cables maintain signal integrity for HVAC controls, sensors, and actuators.
IEC 60227 and IEC 60502 cover general requirements, test procedures, construction, and performance criteria for PVC- and XLPE-insulated cables rated up to 1 kV.
IEC 60332-1 and IEC 60332-3 address flame retardancy tests for single and bunched cables, ensuring minimal flame propagation in building installations.
The NEC defines low voltage circuits under Article 725 (Class 1, 2, 3 power limited circuits) and Articles 800–820 for communications and control wiring. Installation rules include minimum separation from high-voltage conductors (typically 12 inches), conduit fill limits, and cable support intervals to prevent mechanical damage.
NEC Article 310 provides ampacity tables for copper and aluminum conductors with various insulation types (e.g., THHN, XHHW), guiding conductor sizing and derating in raceways.
NEC Article 725.154 requires cables installed in plenums or air-handling spaces to meet UL 910 (NFPA 262) flame propagation criteria (plenum cables).
Low Smoke Zero Halogen (LSZH) cables, per IEC 60754 and IEC 61034, minimize toxic gas and smoke during a fire.
In Europe, low voltage cables must comply with the Low Voltage Directive (LVD) 2014/35/EU, ensuring basic electrical safety and electromagnetic compatibility (EMC).
Harmonized standards such as EN 50306 (power cables with extruded insulation and PVC sheath) and EN 50363 (insulating and sheathing materials) provide detailed normative requirements.
Maintain minimum bending radii—typically six times the cable diameter for power cables—to avoid mechanical stress and preserve conductor integrity. Use appropriately sized conduits, trays, or ducts to avoid overcrowding. Raceway fill should not exceed 40% for individual cables or 53% for multiple cables to allow adequate heat dissipation.
Maintain a minimum separation of 12 inches from high-voltage power conductors to reduce electromagnetic interference and safety hazards. Low voltage communication and data cables should be routed separately or shielded when crossing power circuits to prevent signal degradation.
Use glands, lugs, or connectors rated for the cable’s conductor size and insulation type. Apply manufacturer-recommended torque settings. For aluminum conductors, use conductive grease or anti-oxidation compounds to prevent increased contact resistance and potential hotspots.
For outdoor or direct-burial installations, select cables with UV-resistant jackets and water-blocking features to prevent moisture ingress and jacket deterioration. In hazardous areas (e.g., Class I Division 2), choose cables with appropriate flame retardant and low-smoke characteristics as specified by NFPA 496 and UL 1581.
Verify conductor continuity and insulation resistance (Megger test) to ensure cables meet manufacturer specifications. Perform a high-potential (hipot) test at 1.5 times the rated voltage for one minute to confirm dielectric integrity.
Inspect all terminations to ensure correct torque values and verify proper phase orientation for three-phase circuits. Use thermal imaging under load to identify hotspots or loose connections that may lead to failures.
Schedule regular inspections—at least annually or more frequently in harsh environments—to check for physical damage, moisture ingress, jacket degradation, and signs of overheating. Retighten connections and reapply anti-oxidation compounds for aluminum conductors as needed to maintain low contact resistance.
Use cables with flame-retardant ratings (e.g., UL 1581 VW-1, IEC 60332-1) in plenum, riser, and other fire-sensitive spaces in accordance with local codes. Specify LSZH cables in enclosed or high-occupancy areas to minimize smoke and toxic gas emissions during a fire.
Ensure proper grounding of metallic cable armor and concentric neutral conductors to provide a reliable fault current path and protect personnel. Follow NEC Article 250 guidelines for bonding jumper sizes and grounding electrode conductor sizing.
In electrically noisy environments, use shielded cables (foil or braided shields) to mitigate EMI and maintain signal integrity for control and instrumentation circuits. Maintain adequate separation, proper grounding, and conduit segregation to reduce coupling between power and data cables.
Low voltage power cables—from simple PVC-insulated conductors to robust, armoured XLPE cables—are fundamental to modern electrical and communication systems. Complying with international and national standards (IEC, NEC, EN, etc.) and following best practices in selection, installation, testing, and maintenance ensures safety, reliability, and cost efficiency throughout a cable’s service life. Proper planning and execution help mitigate risks associated with mechanical damage, overheating, and electromagnetic interference, ultimately reducing downtime and lifecycle costs.
Low voltage typically refers to systems operating above 50 VAC up to 1 kV (0.6/1 kV). Extra-low voltage (ELV) covers ≤ 50 VAC or ≤ 120 VDC.
Armoured cables (SWA/STA) provide mechanical protection against impacts, crushing, rodents, and moisture—ideal for underground, exposed, or industrial environments.
Conductor sizing depends on load current, permissible voltage drop (typically ≤ 3%), and installation method (e.g., conduit, direct burial). Refer to ampacity charts (IEC 60287 or NEC 310) and apply appropriate derating factors.
XLPE is preferred for its high thermal rating (90 °C) and excellent chemical and moisture resistance. LSZH jackets provide low smoke and toxicity during fires.
Inspect cables at least annually, or more frequently in harsh or critical installations. Look for mechanical damage, insulation degradation, and loose terminations, using thermal imaging when possible.
