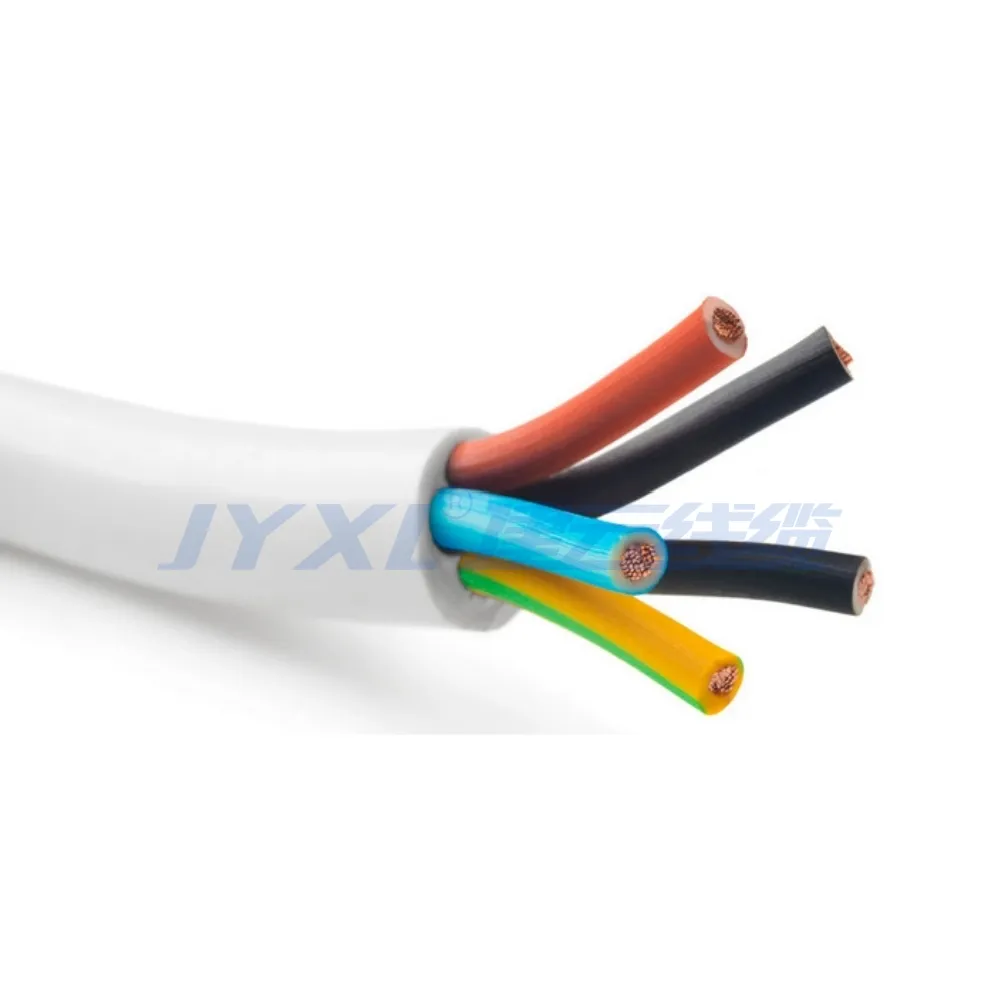

What Are Lead Wires?

Lead wires, also known as hook-up wires, are single-core insulated cables used to create electrical connections between components within electronic circuits or devices. They facilitate power transmission, signal flow, or data communication, acting as a bridge to ensure current flows smoothly between components like resistors, capacitors, sensors, or control systems. Typically made with a copper or aluminum conductor and insulated with materials like PVC, Teflon, or silicone, lead wires are essential in industries such as medical, automotive, aerospace, and industrial automation. Their design prioritizes flexibility, reliability, and customization, making them distinct from multi-conductor cables like TPS or building wires like THHN or RHW discussed previously. Lead wires comply with standards like UL (e.g., UL 1007, UL 1015), CSA, and MIL-SPEC for safety and performance.

Construction and Properties

Lead wires are designed for versatility and durability, with a construction that includes:

• Conductor: Usually stranded or solid copper, often tinned for corrosion resistance and easier soldering. Aluminum is a lightweight, less conductive alternative. Stranded conductors enhance flexibility, ideal for dynamic applications.
• Insulation: Common materials include polyvinyl chloride (PVC, up to 105°C), polytetrafluoroethylene (Teflon/PTFE, up to 200°C), silicone (up to 150°C), or Hypalon for chemical resistance. Insulation protects against electrical faults and environmental factors like moisture or abrasion.
• Shielding: For signal-sensitive applications, lead wires may include copper braided shields, aluminum foil, or combination shields to prevent electromagnetic interference (EMI), ensuring signal purity.
• Connection Ends: Options range from bare wire ends to precision-soldered heads, crimped terminals, or connectors (e.g., IDC, cable lugs) for seamless integration with components.

Key properties include high flexibility, corrosion resistance (with electroplated cadmium, gold, or silver), temperature stability (from -40°C to 200°C), and mechanical strength via reinforced insulation. Lead wires are customizable in size (e.g., 26 AWG to 10 AWG), shape, and shielding, akin to the tailored designs of custom cables or TPI wires discussed earlier.

Types of Lead Wires

Lead wires vary by insulation, application, and standards to meet diverse needs:

• PVC Lead Wires (e.g., UL 1007, UL 1015): Cost-effective, rated for 300V–600V and 80°C–105°C, used in low-voltage electronics like appliances or control panels. Flexible and easy to strip.
• Teflon/PTFE Lead Wires (e.g., UL 1332): High-temperature (up to 200°C) and chemical-resistant, ideal for aerospace, medical, or automotive engine compartments. Comparable to Teflon cables’ heat resistance.
• Silicone Lead Wires: Flexible and heat-resistant (up to 150°C), used in medical devices and high-vibration environments like motors or generators.
• MIL-SPEC Lead Wires (e.g., MIL-W-16878): Meet military standards for aerospace and defense, offering durability in extreme conditions like high altitudes or corrosive environments.
• Shielded Lead Wires: Feature EMI shielding for signal transmission in telecom or automation, ensuring data integrity in noisy environments.
• High-Voltage Lead Wires: Designed for applications like transformers or rectifiers, rated up to 15 kV, with robust insulation like EPDM.

Sizes range from 26 AWG (small-signal circuits) to 10 AWG (higher-current applications), with stranded conductors common for flexibility, similar to TPE or multi-conductor cables.

Applications of Lead Wires

Lead wires are critical in connecting components across various industries:

• Electronics: Connect circuit boards, LEDs, or switches in computers, printers, and consumer electronics, supporting low-voltage signal transmission (e.g., 22 AWG for small currents).
• Medical Devices: Used in ECG/EKG leads, patient monitors, and wearable electronics, with disposable or sterilizable options for safety. Teflon or silicone insulation ensures biocompatibility.
• Automotive: Form wiring harnesses for batteries, sensors, or lighting, requiring heat resistance (e.g., PTFE for engine compartments) and vibration resistance, unlike household wires like THHN.
• Aerospace: Enable flight controls and instrumentation, with MIL-SPEC wires resisting extreme temperatures and altitudes, similar to Teflon or submarine cable durability.
• Industrial Automation: Connect sensors, actuators, robotic arms, or conveyor belts to control systems, using shielded wires to prevent EMI in factories.
• Appliances: Facilitate internal wiring in ovens, motors, or vending machines, with PVC or silicone wires for cost-effective reliability.

These applications highlight lead wires’ adaptability, akin to RHW’s versatility or multi-pair cables’ signal transmission capabilities.

Advantages and Disadvantages

Lead wires offer numerous benefits but also have limitations:

• Advantages:
  • Flexibility: Stranded conductors and soft insulation (e.g., silicone) allow use in tight or dynamic spaces, unlike rigid THHN.
  • Customizability: Available in various sizes, insulation types, and shielding options to meet specific voltage, temperature, or EMI needs.
  • Corrosion Resistance: Tinned copper or electroplated coatings (e.g., silver) enhance durability in wet or chemically aggressive environments.
  • Signal Integrity: Shielded options ensure reliable data transmission in EMI-prone settings, critical for automation or telecom.
  • Compliance: Meet UL, CSA, and MIL-SPEC standards, ensuring safety in medical, military, or industrial applications.
• Disadvantages:
  • Limited Current Capacity: Smaller gauges (e.g., 22 AWG) are unsuitable for high-current applications, unlike RHW or 6 AWG wires.
  • Cost: Specialized insulation (e.g., Teflon) or shielding increases costs compared to basic PVC wires like TPS or THHN.
  • Mechanical Vulnerability: Single-core design is less robust than multi-conductor cables in high-abrasion environments, requiring careful installation.
  • Complexity in High-Frequency Circuits: Leads introduce capacitance and inductance, affecting performance in RF applications, as seen with integrated circuits.

These trade-offs mirror discussions of PUR vs. PVC or LSOH’s specialized applications, balancing flexibility and cost.

Lead Wires vs. Other Building Wires Comparison Table

Lead wires differ from building wires like THHN, RHW, or TPS in design and application. The table below compares their key attributes:

Note: Verify specifications with UL, NEC, or AS/NZS standards for specific applications.

Tips for Choosing Lead Wires

Selecting the right lead wire requires careful consideration of project needs:

• Match Application Needs: Use PVC lead wires for low-voltage electronics, Teflon for high-temperature automotive or aerospace, or shielded wires for EMI-sensitive automation.
• Assess Environmental Conditions: Choose silicone or Hypalon for wet or high-vibration environments, similar to PUR’s durability, and tinned copper for corrosion resistance.
• Check Electrical Ratings: Select wires rated above the circuit’s voltage (e.g., 300V for low-voltage circuits) and appropriate gauge (e.g., 22 AWG for signals, 16 AWG for motors).
• Consider Flexibility: Opt for stranded conductors for dynamic applications or tight spaces, unlike solid THHN or RHW.
• Ensure EMI Protection: Use shielded lead wires for signal transmission in industrial or telecom settings to maintain data integrity.
• Verify Standards: Confirm compliance with UL (e.g., UL 1015), CSA, MIL-SPEC, or FDA regulations, especially for medical or military applications.
• Consult Professionals: Engage electrical engineers or manufacturers to customize lead wires and ensure proper installation, adhering to codes like NEC or AS/NZS 3000.

These steps ensure performance and safety, similar to selecting RHW or multi-pair cables.
