What Are Halogen-Free Cables?

Halogen-free cables, often labeled as Low Smoke Zero Halogen (LSZH, LS0H, or LSFH), are electrical cables designed without halogen elements like fluorine, chlorine, bromine, iodine, or astatine in their insulation and jacketing materials. Unlike traditional cables, such as those with polyvinyl chloride (PVC) insulation, halogen-free cables use materials like silicone rubber, polyurethane (PUR), polyethylene (PE), or cross-linked polyethylene (XLPE), which produce minimal smoke and no toxic or corrosive gases when exposed to fire. These cables are critical in safety-conscious environments like public buildings, transportation systems, and marine applications, where fire safety and environmental impact are paramount. They comply with international standards, such as IEC 60754-1 (halogen content) and IEC 61034 (smoke density), ensuring performance and safety. Halogen-free cables align with the fire-resistant and eco-friendly properties of cables like LSOH or PUR discussed previously, offering a safer alternative to PVC or THHN.

Construction and Properties

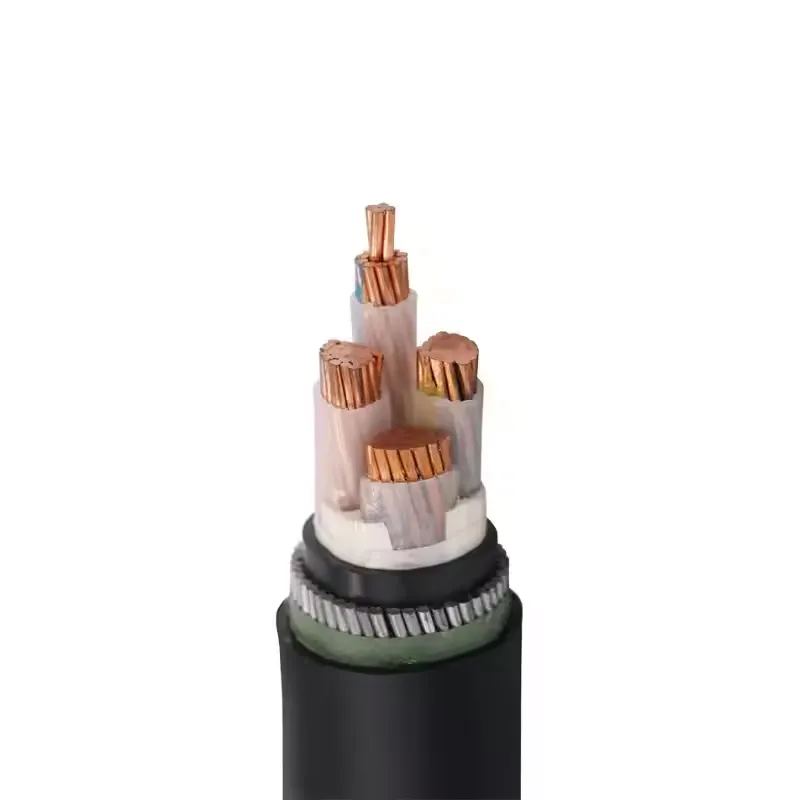

Halogen-free cables are engineered for safety and durability, with a construction that includes:

• Conductor: Typically stranded or solid copper, often tinned for corrosion resistance, similar to lead wires or PUR cables. Aluminum is used in some low-voltage applications for cost savings.
• Insulation: Materials like silicone rubber, PUR, PE, XLPE, or polypropylene provide electrical isolation, flame retardancy, and low smoke emission. These are free of halogens, unlike PVC or chloroprene rubber.
• Jacket: Halogen-free outer sheaths, such as polyolefin or TPE, enhance flame resistance and self-extinguishing properties, protecting against environmental stressors like UV or moisture.
• Shielding: Optional copper braid or aluminum foil for EMI protection in signal-sensitive applications, as in multi-pair or telecom cables.

Key properties include low smoke density (per IEC 61034), zero halogen gas emission (per IEC 60754-1), flame retardancy (per IEC 60332), and tensile strength (10–14 MPa, with 150–250% elongation at break). These cables resist temperatures from -50°C to 105°C, offer high volume resistivity (>10¹⁶ Ω/cm³), and withstand voltages up to 15 kV in some designs, making them versatile for low to medium-voltage systems, akin to RHW or LSOH cables.

Key Benefits of Halogen-Free Cables

Halogen-free cables offer significant safety, environmental, and performance advantages over halogenated cables like PVC:

• Enhanced Fire Safety: In a fire, they emit minimal smoke and no toxic halogenated gases (e.g., hydrochloric acid from PVC), reducing inhalation risks and improving visibility for evacuation. This is critical in confined spaces like subways or hospitals.
• Reduced Corrosion: No corrosive hydrogen halides are released, protecting equipment, electronics, and building structures from damage, unlike PVC cables that corrode metal surfaces.
• Environmental Friendliness: Free of heavy metals (e.g., lead, cadmium) and halogens, these cables minimize soil and water pollution during production, use, and disposal, aligning with RoHS and eco-friendly standards.
• Longevity and Durability: With a service life of up to 70 years (vs. 25 years for PVC), they resist UV, moisture, and chemicals, reducing replacement costs, similar to XLPE or PUR cables.
• Regulatory Compliance: Meet stringent standards like IEC 60754-1/2, IEC 61034, and CPR (Construction Products Regulation) classes (e.g., Dca-s2,d2,a2), ensuring suitability for public and industrial applications.
• Improved Evacuation and Rescue: Low smoke enhances visibility, aiding firefighters and evacuees, as demonstrated in incidents like the 1987 King’s Cross fire, where toxic smoke caused most fatalities.

These benefits make halogen-free cables a safer, sustainable alternative, mirroring the fire-resistant properties of LSOH or fire-resistant cables discussed earlier.

Applications of Halogen-Free Cables

Halogen-free cables are widely used in environments prioritizing safety and minimal environmental impact:

• Public Buildings: Hospitals, schools, airports, and shopping malls use LSZH cables for wiring, lighting, and emergency systems to ensure safe evacuation and protect equipment.
• Transportation: Subways, trains, airplanes, and ships employ halogen-free cables for power, signaling, and communication, reducing toxic emissions in confined spaces, similar to marine or railway cables.
• Residential and Commercial: New constructions and renovations use LSZH cables for wiring to enhance occupant safety and sustainability, akin to PUR or LSOH applications.
• Industrial Settings: Data centers, nuclear plants, and chemical facilities use halogen-free cables to protect sensitive equipment and minimize fire propagation, similar to XLPE or shielded cables.
• Electric Vehicles: Halogen-free cables reduce vehicle weight and enhance safety in battery and power systems, complementing automotive wiring harnesses.
• Marine and Offshore: Boats and offshore platforms use halogen-free wires for corrosion resistance and safety in high-humidity environments, as discussed in marine cable applications.

These applications highlight their versatility, akin to the adaptability of silicone, Teflon, or RHW cables in extreme conditions.

Limitations of Halogen-Free Cables

Despite their advantages, halogen-free cables have some drawbacks:

• Higher Cost: Raw materials (e.g., XLPE, PUR) and manufacturing processes are more expensive than PVC, increasing initial costs.
• Reduced Flexibility: High filler content in LSZH jackets can make cables stiffer, complicating installation in tight spaces compared to PVC or silicone cables.
• Limited Conductivity: Some halogen-free materials have slightly lower electrical performance than PVC for high-frequency applications, requiring shielding, as in multi-pair cables.
• Not Universal: Cannot fully replace PVC cables in all applications due to PVC’s superior mechanical properties and lower cost in non-critical settings.

These limitations echo trade-offs discussed with PUR vs. PVC or LSOH cables, balancing safety and practicality.

Halogen-Free vs. PVC Cables Comparison Table

Halogen-free cables differ significantly from PVC cables in safety and environmental impact. The table below compares their key attributes:

Note: Verify specifications with IEC, NEC, or AS/NZS standards for specific applications.

Tips for Choosing Halogen-Free Cables

Selecting the right halogen-free cable requires careful consideration of project needs:

• Assess Fire Safety Needs: Choose LSZH cables for public spaces, transportation, or confined areas to minimize smoke and toxicity, as in subway or hospital wiring.
• Evaluate Environmental Conditions: Select cables with UV, moisture, or chemical resistance (e.g., PUR, XLPE) for outdoor or marine applications, similar to PUR or marine cables.
• Check Electrical Ratings: Ensure voltage (e.g., 600V–15 kV) and conductor size (e.g., 26 AWG to 4 AWG) match circuit requirements, as with lead or MV cables.
• Verify Standards: Confirm compliance with IEC 60754-1/2, IEC 61034, CPR classes, or UL standards for safety and regulatory adherence.
• Consider Flexibility: Opt for stranded conductors or softer jackets (e.g., silicone) for dynamic or tight-space installations, unlike stiffer XLPE cables.
• Balance Cost and Longevity: Weigh higher upfront costs against a 70-year lifespan and reduced maintenance, especially in critical applications.
• Consult Professionals: Engage electrical engineers or manufacturers to customize cables and ensure compliance with codes like NEC or AS/NZS 3000.

These steps ensure safety and performance, similar to selecting LSOH, RHW, or Teflon cables.

Conclusion

Halogen-free cables, or LSZH cables, are a vital solution for enhancing safety and sustainability in modern wiring applications. By eliminating halogens like chlorine and fluorine, they produce minimal smoke and no toxic or corrosive gases during fires, protecting lives, equipment, and the environment. Their applications span public buildings, transportation, industrial facilities, and marine environments, offering a 70-year lifespan, compliance with standards like IEC 60754-1, and resistance to harsh conditions. While higher costs and reduced flexibility pose challenges, their benefits in fire safety, corrosion prevention, and environmental friendliness make them indispensable in safety-critical settings. By carefully selecting halogen-free cables based on application needs, environmental factors, and regulatory requirements, users can achieve reliable, long-term performance, building on the adaptability of cables like LSOH, PUR, or RHW discussed previously.
