Grounding Wires: What They Are and Why They Matter

What Are Grounding Wires?

Grounding wires, also known as earth wires or protective earth (PE) conductors, are essential components of electrical systems designed to connect electrical circuits, devices, or equipment to the earth. Their primary role is to provide a low-resistance path for fault currents to safely dissipate into the ground, preventing electric shocks, fires, and equipment damage. By establishing a reference potential to the earth, grounding wires stabilize voltage levels, mitigate static electricity buildup, and protect against surges, such as those from lightning strikes. Typically bare or insulated with green or green/yellow-striped jackets, these wires comply with standards like the National Electrical Code (NEC), IEC 60364, and AS/NZS 3000, ensuring safety in residential, commercial, and industrial settings. Grounding wires complement hot and neutral wires, similar to the safety features of LSOH or RHW cables discussed previously, and are critical in systems like THHN or multi-conductor cables.

Construction and Components

Grounding wires and their associated systems are built to ensure reliable electrical safety, with key components including:

• Grounding Conductor: Bare or insulated copper (sometimes aluminum) wire, often green or green/yellow-striped, connecting devices to the grounding system. Stranded or solid, sizes range from 14 AWG to 2/0 AWG, depending on circuit amperage.
• Grounding Electrode: A metal rod (copper or steel, ≥8 ft long, ≥3/8 inch diameter per NEC) driven into the earth to establish a direct connection, similar to submarine cable grounding.
• Grounding Busbar/Lug: A metal bar in the electrical panel where grounding conductors terminate, linking to the electrode via a grounding electrode conductor (GEC).
• Connectors: Clamps, screws, or pigtail wires (≥6 inches) secure grounding wires to outlets, switches, or metal enclosures, ensuring continuity.

Materials like copper (59.6 MS/m conductivity) or aluminum (lower conductivity, larger gauge required) are chosen for durability and corrosion resistance, akin to CCS or PUR cables. Insulation, when used, is typically PVC, HMWPE, or XLPE for environmental protection. The system’s low resistance (<1 Ω ideally) ensures fault currents trigger circuit breakers or RCDs, aligning with NEC and IEC standards.

Key Functions of Grounding Wires

Grounding wires serve multiple critical functions in electrical systems:

• Fault Current Diversion: Provide a low-resistance path for excess current during faults (e.g., short circuits), triggering circuit breakers or fuses to halt current flow, preventing shocks or fires.
• Electric Shock Prevention: Divert leakage current from exposed metal parts (e.g., appliance casings) to the ground, protecting users, as seen in three-prong outlets.
• Voltage Stabilization: Maintain consistent voltage levels by referencing the earth’s potential, ensuring system efficiency, similar to balanced loads in MV cables.
• Surge Protection: Dissipate surges from lightning or switching, safeguarding equipment, as with surge protectors in telecom or data centers.
• Static Discharge Control: Prevent static buildup in flammable environments (e.g., fuel storage), reducing spark risks, akin to grounding in marine applications.
• Electromagnetic Compatibility: Reduce EMI in sensitive systems (e.g., audio studios, medical equipment), ensuring signal integrity, as in shielded multi-pair cables.

These functions enhance safety and reliability, complementing the protective roles of LSOH or halogen-free cables in fire-prone settings.

Applications of Grounding Wires

Grounding wires are integral across various environments:

• Residential: Connect outlets, appliances, and panels to grounding rods, ensuring safety in homes, especially with three-prong outlets (standard since the 1960s per NEC).
• Commercial: Used in offices, malls, and stadiums for wiring, lighting, and HVAC systems, protecting against faults, similar to THHN applications.
• Industrial: Ground machinery, generators, and data centers to prevent equipment damage and EMI, as in MV or shielded cables.
• Medical: Ensure safety in hospitals by grounding sensitive equipment (e.g., imaging devices), reducing shock risks, akin to silicone or LSOH cables.
• Telecom and Power: Used in transmission lines and substations for lightning protection and static control, similar to CCS or submarine cables.
• Construction: Ground temporary power systems and generators to protect workers, as in lead wire applications.
• Specialized: Ground radio antennas, lightning rods, and photovoltaic systems (PV wire) for operational safety and surge protection.

These applications underscore their versatility, mirroring the adaptability of Teflon or PUR cables in harsh conditions.

Types of Grounding Wires

Grounding wires vary by material, construction, and application:

• Bare Copper Wire: High conductivity, used in permanent installations (e.g., residential grounding), available in solid or stranded forms.

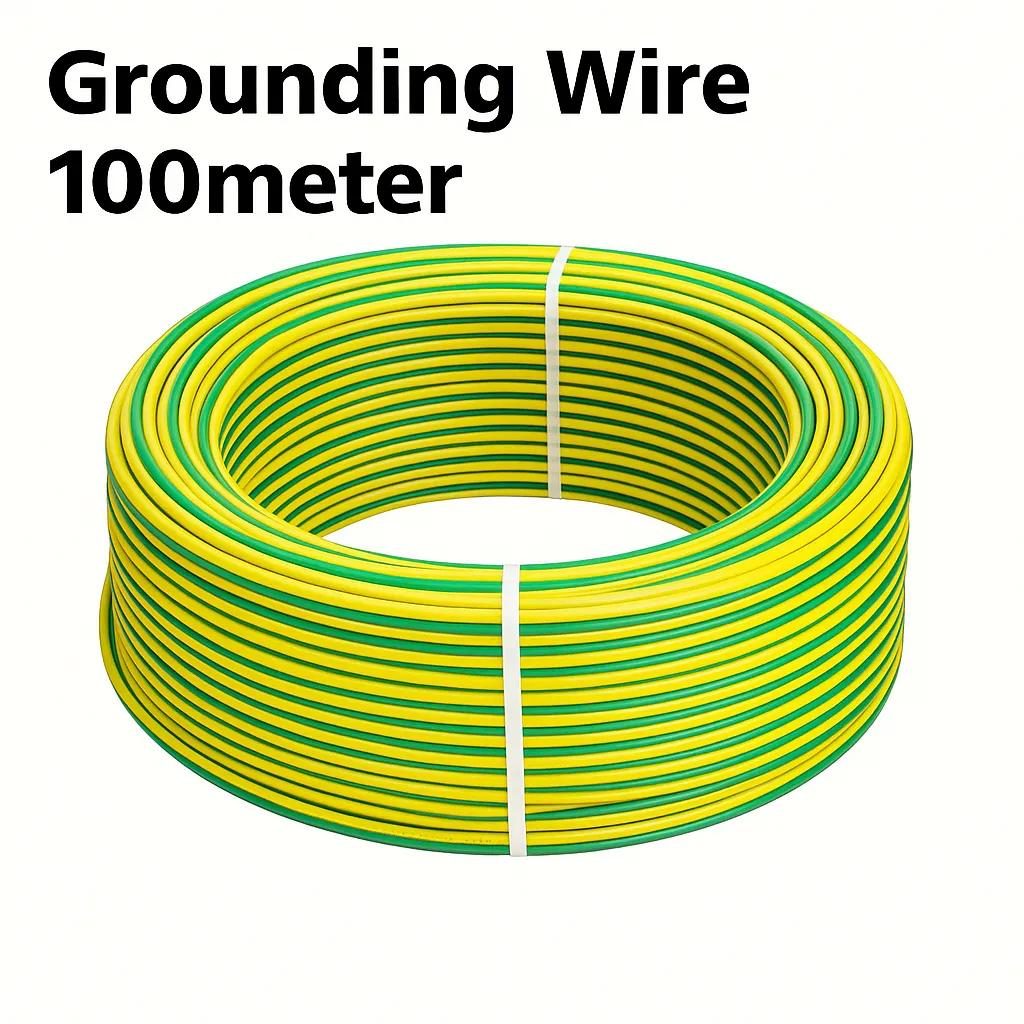

• Insulated Copper Wire: Green or green/yellow PVC/HMWPE insulation, protects against corrosion in wet or outdoor settings, as in THHN or 12/2 cables.
• Aluminum Wire: Lightweight, cost-effective for large gauges (e.g., 2/0 AWG), used in grounding grids, requiring larger sizes due to lower conductivity.
• Copper-Clad Steel (CCS): Combines steel’s strength with copper’s conductivity, used in telecom and lightning protection, balancing cost and performance.
• PV Wire: Copper or aluminum, designed for solar grounding, with UV-resistant insulation for outdoor use.
• Stranded vs. Solid: Stranded offers flexibility for dynamic applications; solid is rigid for fixed setups, similar to lead or multi-conductor cables.

Sizes (e.g., 14 AWG for 15A circuits, 2/0 AWG for high-current grounding) are selected per NEC charts, ensuring fault current capacity.

Grounding vs. Non-Grounding Systems Comparison Table

Grounding systems significantly enhance safety compared to ungrounded systems. The table below compares their key attributes:

Note: Verify grounding requirements with NEC, IEC, or local codes for specific applications.

Tips for Choosing Grounding Wires

Selecting the right grounding wire ensures safety and compliance:

• Match Circuit Amperage: Use NEC sizing charts (e.g., 14 AWG for 15A, 10 AWG for 30A) to select wire gauge, ensuring fault current capacity.
• Choose Material: Opt for copper for high conductivity; use aluminum or CCS for cost savings in large-scale grounding, as in telecom or PV systems.
• Consider Environment: Select insulated wires (PVC/XLPE) for wet or corrosive settings; bare copper for dry, permanent installations.
• Ensure Flexibility: Use stranded wires for dynamic or vibration-prone setups; solid for fixed systems, similar to lead or THHN cables.
• Verify Standards: Confirm compliance with NEC, IEC 60364, or AS/NZS 3000, ensuring proper electrode and conductor sizing.
• Check Installation: Ensure secure connections to rods (≥8 ft) and busbars, with rods spaced ≥6 ft apart if multiple, per NEC.
• Consult Professionals: Engage electricians for complex systems or older homes to verify grounding integrity, especially for three-prong retrofits.

These steps ensure robust grounding, akin to selecting LSOH or RHW for safety-critical applications.

Conclusion

Grounding wires are indispensable for electrical safety and system reliability, providing a low-resistance path for fault currents to prevent shocks, fires, and equipment damage. By connecting circuits to the earth via conductors, electrodes, and busbars, they stabilize voltages, mitigate surges, and reduce EMI, serving applications from homes to industrial facilities. Available in copper, aluminum, or CCS, with bare or insulated options, grounding wires must be sized and installed per NEC, IEC, or local standards to ensure performance. While ungrounded systems persist in older homes or low-power devices, modern grounded systems—marked by three-prong outlets—are essential for safety, complementing the protective features of cables like THHN, LSOH, or halogen-free discussed previously. By selecting appropriate grounding wires and consulting professionals, users can safeguard lives and property, ensuring compliance and long-term reliability.
