What Is H07RN-F Cable?

H07RN-F cable is a heavy-duty, flexible, rubber-insulated power cable designed for demanding indoor and outdoor applications. Rated for 450/750V, it is harmonized under European standards (denoted by "H"), making it suitable for industrial, construction, and mobile equipment use. The cable’s robust construction, featuring ethylene propylene rubber (EPR) insulation and a polychloroprene (PCP) sheath, ensures resistance to weather, oil, chemicals, and mechanical stress. Its flexibility and durability make it ideal for dynamic environments, similar to trailing cables discussed previously, but with a focus on versatility across harsh conditions. H07RN-F cables comply with standards like IEC 60245, EN 50525-2-21, and IEC 60332-1-2 for flame retardancy, ensuring safety and reliability.

Construction and Specifications

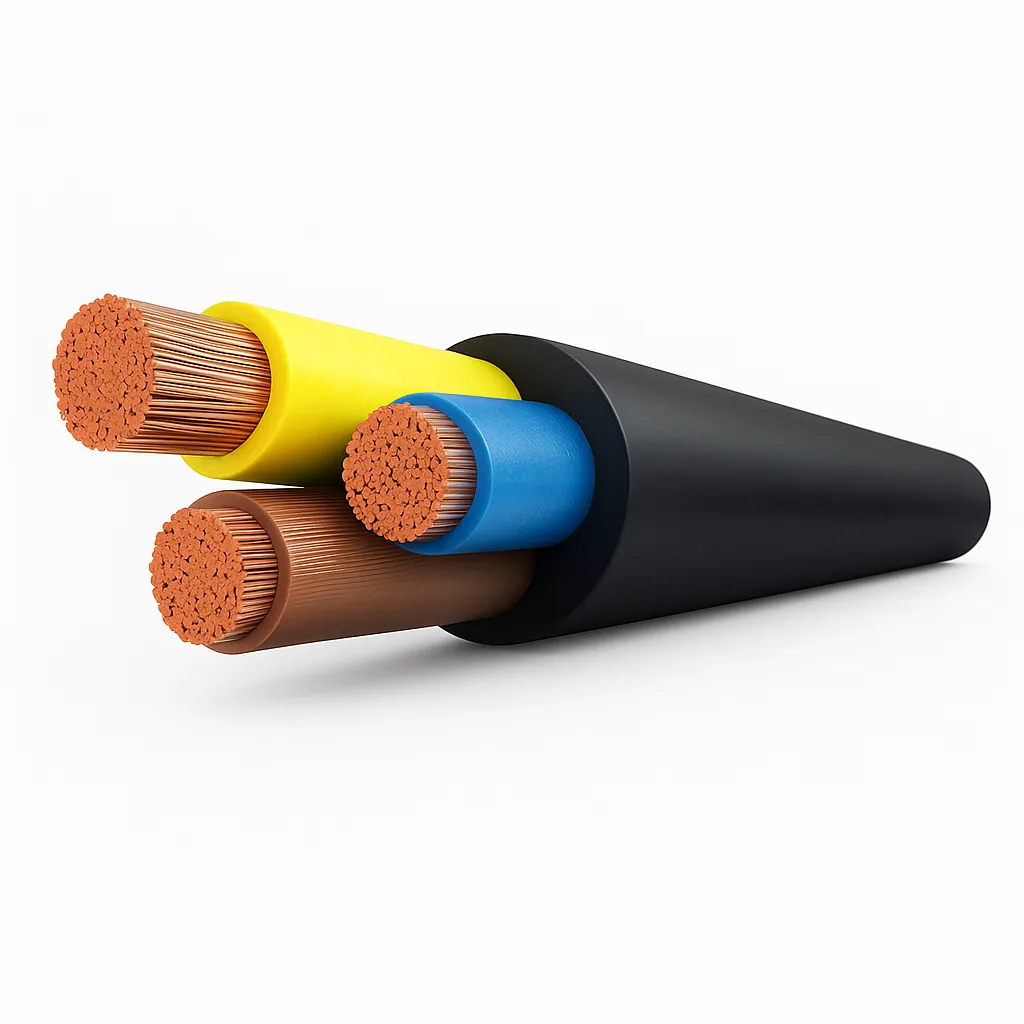

H07RN-F cables are engineered for flexibility and resilience, with a construction that includes:

• Conductor: Class 5 annealed copper (59.6 MS/m conductivity), stranded for high flexibility, conforming to DIN VDE 0295 and IEC 60228. Sizes range from 1.5 mm² to 240 mm², similar to multi-conductor or 6 AWG wires.
• Insulation: Ethylene propylene rubber (EPR) provides excellent thermal stability (-40°C to +90°C), ozone resistance, and dielectric strength, akin to LSOH or Teflon insulation.
• Sheath: Polychloroprene (PCP, or neoprene) offers oil, abrasion, UV, and weather resistance, withstanding harsh environments like those for marine or trailing cables.
• Configuration: Available in single-core (e.g., 1x240 mm²) or multi-core (2 to 19 cores, e.g., 3G2.5 mm², 5G6 mm²), with color-coded conductors (e.g., green/yellow for ground) per IEC 60446.
• Grounding: Multi-core versions include a grounding conductor, ensuring fault protection, similar to grounding wires or household cables.

Specifications include a voltage rating of 450/750V, flame retardancy (IEC 60332-1-2), water resistance (AD8 for submersion up to 10m), and a bending radius of 4x diameter (fixed) or 6x (flexed). Operating temperatures range from -40°C to +60°C (mobile) or +85°C (fixed), with short-circuit tolerance up to +200°C.

Key Benefits of H07RN-F Cable

H07RN-F cables offer significant advantages for demanding applications:

• High Flexibility: Class 5 copper conductors and EPR insulation allow frequent bending and twisting, ideal for mobile equipment, similar to trailing or PUR cables.
• Environmental Resistance: PCP sheath resists oil, grease, UV, ozone, and water (AD8), ensuring durability in harsh conditions, akin to marine or RHW cables.
• Thermal Stability: Operates from -40°C to +90°C, with short-circuit tolerance up to +200°C, outperforming PVC cables like NYY or household NM cables.
• Safety: Flame-retardant (IEC 60332-1-2) and low-smoke properties reduce fire risks, similar to LSOH or halogen-free cables, with grounding for fault protection.
• Durability: Abrasion and tear-resistant sheath extends lifespan (10–20 years), reducing maintenance, as seen in trailing or braided cables.
• Versatility: Single- and multi-core options support diverse applications, from cranes to wind turbines, akin to multi-conductor or 6 AWG wires.

These benefits make H07RN-F cables a reliable choice for dynamic and harsh environments.

Applications of H07RN-F Cable

H07RN-F cables are used in industries requiring robust, flexible power delivery:

• Construction: Powers mobile equipment (e.g., cranes, pumps) and temporary power systems on sites, with weather and oil resistance, similar to trailing cables.
• Industrial: Connects heavy machinery, forklifts, and conveyors in factories, withstanding mechanical stress, akin to 6 AWG or multi-conductor cables.
• Marine and Ports: Used in harbor cranes and shipyard equipment, with AD8 water resistance, similar to marine or submarine cables.
• Renewable Energy: Serves as rotor connection cables in wind turbines, enduring dynamic stress and extreme weather, akin to CCS or MV cables.
• Stage and AV: Powers lighting and audio-visual equipment, with flexibility for frequent setup, similar to flexible cords or braided cables.
• Explosion-Prone Areas: Flame-retardant and chemical-resistant properties suit chemical plants and gas stations, enhancing safety like LSOH cables.
• Agriculture: Supports irrigation pumps and mobile equipment in wet, dusty conditions, with durability like PUR or RHW cables.

These applications highlight the cable’s adaptability, mirroring the versatility of silicone or Teflon cables.

Limitations of H07RN-F Cable

Despite its advantages, H07RN-F cables have some drawbacks:

• Cost: Rubber insulation and PCP sheaths are more expensive than PVC cables like NYY or NM, similar to PUR or trailing cables.
• Chemical Exposure: Limited resistance to specific chemicals (e.g., mold release compounds, certain glues), requiring careful application, unlike Teflon cables.
• Weight: Larger sizes (e.g., 1x240 mm², ~2.5 kg/m) are heavy, complicating handling, similar to high-voltage trailing cables.
• Maintenance: Regular inspections are needed to ensure sheath integrity in high-stress or outdoor use, as with trailing or marine cables.
• Static Use: Over-engineered for fixed installations, making it less cost-effective than NYY or household cables in static applications.

These limitations echo trade-offs discussed with PUR vs. PVC or braided cables.

H07RN-F vs. Other Flexible Cables Comparison Table

H07RN-F cables differ from other flexible cables in construction and performance. The table below compares H07RN-F to H05RN-F and NYY cables:

Note: Verify specifications with IEC, NEC, or AS/NZS standards for specific applications.

Tips for Choosing H07RN-F Cable

Selecting the right H07RN-F cable ensures performance and safety:

• Assess Power Needs: Choose core count (e.g., 3G2.5 mm² for three-phase, 1x240 mm² for high-current) and voltage (450/750V) based on equipment, similar to 6 AWG or multi-conductor cables.
• Evaluate Environment: Select PCP sheaths for oil, water, or UV exposure, ensuring AD8 compliance for submersion, akin to marine or RHW cables.
• Ensure Flexibility: Opt for Class 5 conductors for dynamic applications (e.g., cranes, wind turbines), as with trailing or PUR cables.
• Verify Standards: Confirm compliance with IEC 60245, EN 50525-2-21, or IEC 60332 for safety, flame retardancy, and grounding.
• Check Bending Radius: Use 6x diameter for flexed installations to prevent damage, similar to braided or flexible cords.
• Plan Maintenance: Schedule regular inspections for sheath wear in high-stress or outdoor use, as recommended for trailing cables.
• Consult Experts: Work with manufacturers or electricians to customize sizes (e.g., 5G6 mm², 1x50 mm²) for specific loads or environments.

These steps ensure reliable operation, akin to selecting LSOH, trailing, or 6 AWG cables.

Conclusion

H07RN-F cables are a premier choice for flexible, heavy-duty power delivery in harsh industrial and outdoor environments. Their Class 5 copper conductors, EPR insulation, and PCP sheath provide exceptional flexibility, resistance to oil, water, UV, and mechanical stress, and thermal stability from -40°C to +90°C. Rated at 450/750V and compliant with IEC and EN standards, they excel in applications like construction cranes, wind turbines, harbor equipment, and explosion-prone areas, offering safety through flame retardancy and grounding. While higher costs and maintenance needs are considerations, their durability and versatility rival trailing, PUR, or LSOH cables discussed previously. By selecting the appropriate core count, size, and installation practices, users can ensure safe, reliable, and long-lasting performance in the most demanding conditions.
