Copper-Clad Steel vs. Copper Wire: A Comprehensive Guide

What Is Copper-Clad Steel Wire?

Copper-clad steel (CCS) wire is a composite conductor consisting of a steel core coated with a layer of copper, combining the strength of steel with the electrical conductivity and corrosion resistance of copper. This bi-metallic design makes CCS wire a cost-effective alternative to solid copper wire, particularly in applications requiring high tensile strength, such as grounding, telecommunications, and power transmission. CCS wire is manufactured to achieve conductivity levels of 30% to 40% of pure copper, per the International Annealed Copper Standard (IACS), and is widely used in environments where durability and cost savings are critical.

How Are CCS and Copper Wires Constructed?

The construction of CCS and solid copper wires differs significantly due to their materials and manufacturing processes:

• CCS Wire:
  • Core: Made of low, medium, or high-carbon steel, providing high tensile strength.
  • Cladding: A uniform layer of oxygen-free copper is metallurgically bonded to the steel core using processes like pressure, heat, or electrophoretic deposition, achieving a copper thickness of 3% to 10% of the wire’s diameter.
  • Process: The steel core is encased in copper strips or electroplated, then drawn through dies to achieve the desired gauge (e.g., 6 AWG).
  • Properties: Offers 1-2 times the mechanical strength of copper, with conductivity suitable for high-frequency applications due to the skin effect.
• Solid Copper Wire:
  • Core: Composed entirely of pure copper, typically annealed for flexibility.
  • Process: Copper ingots are extruded through molds to form solid or stranded conductors, available in gauges like 6 AWG for high-current applications.
  • Properties: Provides superior electrical conductivity (59.6 MS/m at 20°C) but lower tensile strength compared to steel.

CCS wire’s steel core enhances durability, while copper’s single-material construction maximizes conductivity.

Key Differences Between CCS and Copper

CCS and solid copper wires differ in several critical aspects:

• Electrical Conductivity: Solid copper has a conductivity of 59.6 MS/m, ideal for low-resistance applications. CCS, with 30%-40% IACS conductivity, is less conductive but performs comparably to copper at high frequencies due to the skin effect, where current flows on the copper surface.
• Mechanical Strength: CCS wire’s steel core provides 1-2 times the tensile strength of copper, making it resistant to breaking or stretching under heavy loads, such as in overhead lines.
• Cost: CCS wire is significantly cheaper, costing 50%-70% less than solid copper due to reduced copper content, making it a budget-friendly option.
• Weight: CCS is approximately 10% lighter than copper, easing transportation and installation, especially for long spans.
• Corrosion Resistance: Both materials resist corrosion well, but CCS’s copper cladding protects the steel core, though exposed steel ends may rust, forming a protective “scab” that halts further corrosion.
• Theft Deterrence: CCS has lower scrap value, reducing theft risk compared to valuable solid copper.

These differences make CCS suitable for high-strength, cost-sensitive applications, while copper excels in high-conductivity scenarios.

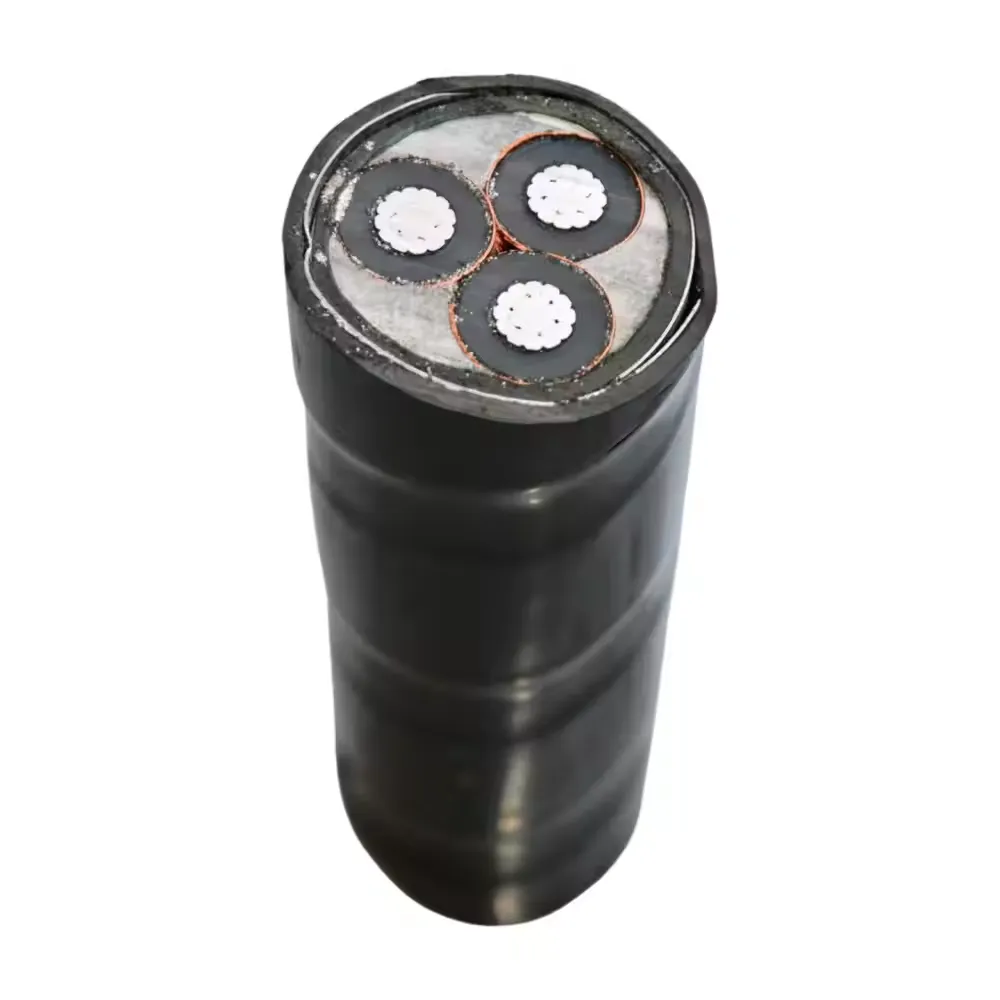

Single-Core and Multi-Core Configurations

Both CCS and solid copper wires are available in single-core and multi-core configurations, similar to other cables like THHN or LSOH:

• Single-Core: CCS single-core wires (e.g., 6 AWG) are used for grounding or tracer wire, offering high strength for direct burial. Solid copper single-core wires are common in residential wiring or welding cables, handling 55-65 amps at 6 AWG.
• Multi-Core: CCS multi-core cables (e.g., 4-core) are used in power transmission or telecommunications, balancing strength and conductivity. Solid copper multi-core cables, like 4-core THHN, are used in three-phase systems, prioritizing conductivity over mechanical strength.

CCS’s strength makes it ideal for multi-core overhead lines, while copper’s flexibility suits complex indoor installations.

Applications of CCS and Copper Wires

CCS and solid copper wires serve distinct purposes based on their properties:

• CCS Wire Applications:
  • Grounding: Used in substations, lightning protection, and buried grid systems for its strength and corrosion resistance.
  • Telecommunications: Employed in coaxial cables (e.g., RG-174, CATV) and drop wires, leveraging high-frequency conductivity.
  • Power Transmission: Ideal for long-distance overhead lines due to its tensile strength and cost-effectiveness.
  • Antennas: Used in radio frequency (RF) antennas for durability in long, unsupported spans.
  • Tracer Wire: Buried with utilities for locating pipes, benefiting from high breaking strength.
• Solid Copper Wire Applications:
  • Residential Wiring: Used in branch circuits and outlets for high conductivity, like 12 AWG for 15-20 amps.
  • Power Distribution: Employed in service entrances and heavy appliances, similar to 6 AWG THHN.
  • Welding Cables: Single-core copper cables handle high currents in welding systems.
  • Audio Systems: Oxygen-free copper (OFC) is used for superior signal clarity in audio equipment.

CCS excels in high-strength, outdoor applications, while copper is preferred for indoor, high-conductivity needs.

CCS vs. Copper Comparison Table

The following table summarizes the key differences between CCS and solid copper wires:

Note: Verify specifications with NEC or a professional electrician for specific applications.

Safety and Selection Tips

Choosing between CCS and solid copper wires requires careful consideration:

• Match Application to Wire: Use CCS for high-strength needs like grounding or overhead lines; choose copper for high-conductivity applications like residential circuits.
• Size for Current Load: Ensure gauge matches amperage (e.g., 6 AWG CCS or copper for 55-65 amps) to prevent overheating.
• Protect Exposed Ends: Seal CCS wire ends with connectors to prevent steel core rusting, especially in wet environments.
• Comply with Codes: Follow NEC or local regulations, as CCS may not be suitable for all power applications where copper is specified.
• Inspect for Damage: Check CCS cladding for nicks or scrapes to maintain conductivity and corrosion resistance.
• Professional Consultation: Hire a licensed electrician for complex installations, such as 4-core CCS or copper cables in power systems.

Proper handling and installation ensure safety and performance for both wire types.

Conclusion

Copper-clad steel wire offers a compelling alternative to solid copper wire, blending steel’s strength with copper’s conductivity and corrosion resistance. Its lower cost, higher tensile strength, and lighter weight make CCS ideal for grounding, telecommunications, and overhead power lines, while solid copper’s superior conductivity suits residential wiring, audio systems, and high-current applications like welding. By understanding their construction, differences, and applications, you can select the right wire for your project, balancing performance, safety, and budget. Consult a professional electrician to ensure compliance with standards and optimal installation.
