Overview of Insulation Resistance Testing

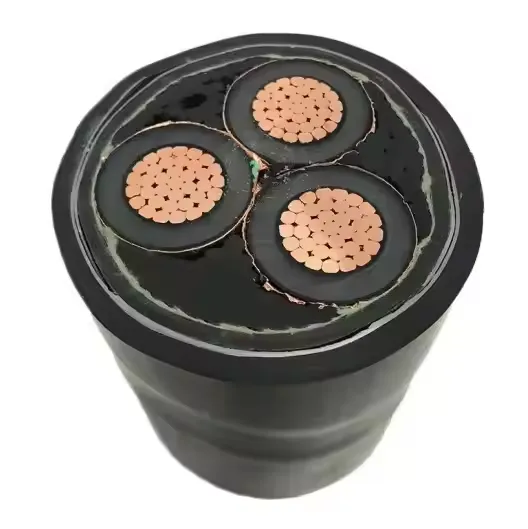

Insulation resistance testing, often referred to as a Megger test, measures the resistance of a cable’s insulation to ensure it prevents unwanted current leakage between conductors or to ground. This test is critical for verifying the integrity of cables in electrical, telecommunications, and renewable energy installations. Low insulation resistance can indicate insulation degradation, moisture ingress, or manufacturing defects, leading to safety hazards or system failures. Regular testing ensures compliance with standards such as IEEE 43, IEC 60229, or the National Electrical Code (NEC), enhancing reliability and safety.

Equipment and Safety Requirements

Performing insulation resistance testing requires specialized equipment and strict safety protocols. Essential items include:

• Insulation Resistance Tester (Megger): A device capable of applying high DC voltage (e.g., 500V, 1000V, or 2500V) to measure resistance in megaohms (MΩ).
• Test Leads: High-quality, insulated leads rated for the tester’s voltage output.
• Personal Protective Equipment (PPE): Insulated gloves, safety glasses, and arc-rated clothing to protect against electrical hazards.
• Lockout/Tagout Kit: To ensure the circuit is de-energized and safe for testing.
• Multimeter: To verify the circuit is de-energized before testing.
• Documentation Tools: Notebook or digital device to record test results and cable details.

Safety precautions:

• Only trained and authorized personnel should perform the test.
• Ensure the cable is isolated and de-energized to prevent shock or equipment damage.
• Follow local safety regulations and manufacturer guidelines for the tester.

Step-by-Step Process for Insulation Resistance Testing

Step 1: Prepare the Testing Environment

Ensure a safe and controlled environment for testing:

• Verify the work area is dry, clean, and free of conductive materials to prevent false readings or safety risks.
• Check ambient conditions; avoid testing in high humidity (>70%) or extreme temperatures, as these can affect results.
• Confirm the cable’s voltage rating to select an appropriate test voltage (e.g., 500V for low-voltage cables, 1000V for medium-voltage).
• Gather cable specifications, including length, insulation type (e.g., XLPE, PVC), and expected resistance values.

Step 2: Disconnect and Isolate the Cable

Properly isolate the cable to ensure accurate results and safety:

• De-energize the circuit using lockout/tagout procedures to prevent accidental energization.
• Use a multimeter to confirm the cable is de-energized (zero voltage).
• Disconnect the cable from all equipment, loads, and terminations at both ends to avoid interference.
• For multi-conductor cables, isolate each conductor from others and ground, unless testing conductor-to-ground resistance.

Step 3: Set Up the Insulation Resistance Tester

Configure the tester for accurate measurement:

• Connect the test leads to the tester’s positive and negative terminals, ensuring secure and clean connections.
• Select the appropriate test voltage based on cable rating (e.g., 500V for cables rated up to 600V, per IEEE 43).
• Calibrate or verify the tester’s functionality by performing a self-test or checking against a known resistance, if applicable.
• Ensure the tester’s battery is fully charged to avoid inaccurate readings.

Step 4: Perform the Test

Execute the insulation resistance test:

• Connect the tester’s positive lead to the conductor under test and the negative lead to ground or another conductor, depending on the test type (e.g., conductor-to-ground or conductor-to-conductor).
• Apply the test voltage for 60 seconds (standard duration per IEEE 43) to stabilize the reading, or as specified by the standard.
• Record the resistance value displayed in megaohms (MΩ). For long cables, wait longer (up to 10 minutes) to account for polarization effects.
• Repeat the test for each conductor in multi-conductor cables and for different test configurations, if required.

Step 5: Record and Analyze Results

Document and evaluate the test results:

• Record the resistance value, test voltage, date, time, ambient temperature, and humidity for each conductor tested.
• Compare results to minimum acceptable values (e.g., >100 MΩ for new cables, >1 MΩ for in-service cables, per IEEE 43).
• Correct readings for temperature if necessary, using correction factors (e.g., resistance halves for every 10°C increase above 20°C).
• Identify anomalies, such as low resistance, indicating insulation damage, moisture, or contamination.

Step 6: Post-Test Procedures

Complete the test safely and prepare for operation:

• Discharge the cable by grounding all conductors to remove residual charge, preventing shock hazards.
• Disconnect the tester and store equipment properly to avoid damage.
• Reconnect the cable to equipment or terminations if it passes the test, or isolate and repair if it fails.
• Document findings in a test report, including recommendations for maintenance or replacement, and share with relevant stakeholders.

Interpreting Test Results

Insulation resistance values indicate the condition of the cable’s insulation:

• >100 MΩ: Excellent insulation, typical for new or well-maintained cables.
• 10–100 MΩ: Acceptable for in-service cables, but monitor for degradation.
• 1–10 MΩ: Marginal, indicating potential issues; further investigation or maintenance is needed.
• <1 MΩ: Unacceptable, signaling insulation failure; replace or repair the cable immediately.

Low readings may result from moisture, dirt, insulation damage, or aging. Retest after cleaning or drying the cable to confirm issues. For critical installations, consult standards or engineers for specific thresholds.

Common Mistakes to Avoid

• Testing Energized Cables: Failing to de-energize the circuit risks shock, equipment damage, or false readings.
• Using Incorrect Test Voltage: Applying excessive voltage can damage insulation, while insufficient voltage may yield unreliable results.
• Ignoring Environmental Factors: High humidity or temperature can skew results, leading to misdiagnosis.
• Neglecting Discharge: Residual charge left in the cable can cause shock or injury during reconnection.
• Inadequate Documentation: Failing to record conditions or results hinders trend analysis and maintenance planning.

Summary Table: Insulation Resistance Testing Steps

Step	Key Actions	Potential Risks if Skipped
Prepare Environment	Ensure dry, clean area; check conditions	False readings, safety hazards
Isolate Cable	De-energize, disconnect, verify with multimeter	Shock, equipment damage
Set Up Tester	Select voltage, connect leads, calibrate	Inaccurate results, insulation damage
Perform Test	Apply voltage for 60 seconds, record MΩ	Missed defects, unreliable data
Analyze Results	Compare to standards, correct for temperature	Misdiagnosis, system failures
Post-Test	Discharge cable, reconnect or repair, document	Shock, incomplete records

Conclusion

Insulation resistance testing is a vital procedure for ensuring the safety and reliability of cable installations. By following a systematic step-by-step process—preparing the environment, isolating the cable, setting up the tester, performing the test, analyzing results, and completing post-test procedures—technicians can identify insulation issues and prevent failures. Proper equipment, safety protocols, and accurate interpretation of results are essential for effective testing. Partnering with reputable suppliers like Jianyun Cable ensures access to high-quality cables with robust insulation, supporting long-term performance and compliance with industry standards.
