TFFN vs. THHN: A Comprehensive Guide to Building Wires

What Are TFFN and THHN Wires?

TFFN (Thermoplastic Flexible Fixture Nylon) and THHN (Thermoplastic High Heat-Resistant Nylon) are types of building wires used for electrical installations, adhering to the National Electrical Code (NEC). Both feature thermoplastic (PVC) insulation and a nylon jacket, but they differ in flexibility, gauge availability, and environmental suitability. TFFN is designed for flexibility and fixture wiring, while THHN is a versatile, heat-resistant option for general-purpose wiring. Understanding their differences is crucial for selecting the right wire for applications like residential circuits, industrial setups, or welding systems.

How Are TFFN and THHN Wires Constructed?

Both TFFN and THHN wires share a similar construction but have distinct characteristics:

• TFFN Wire:

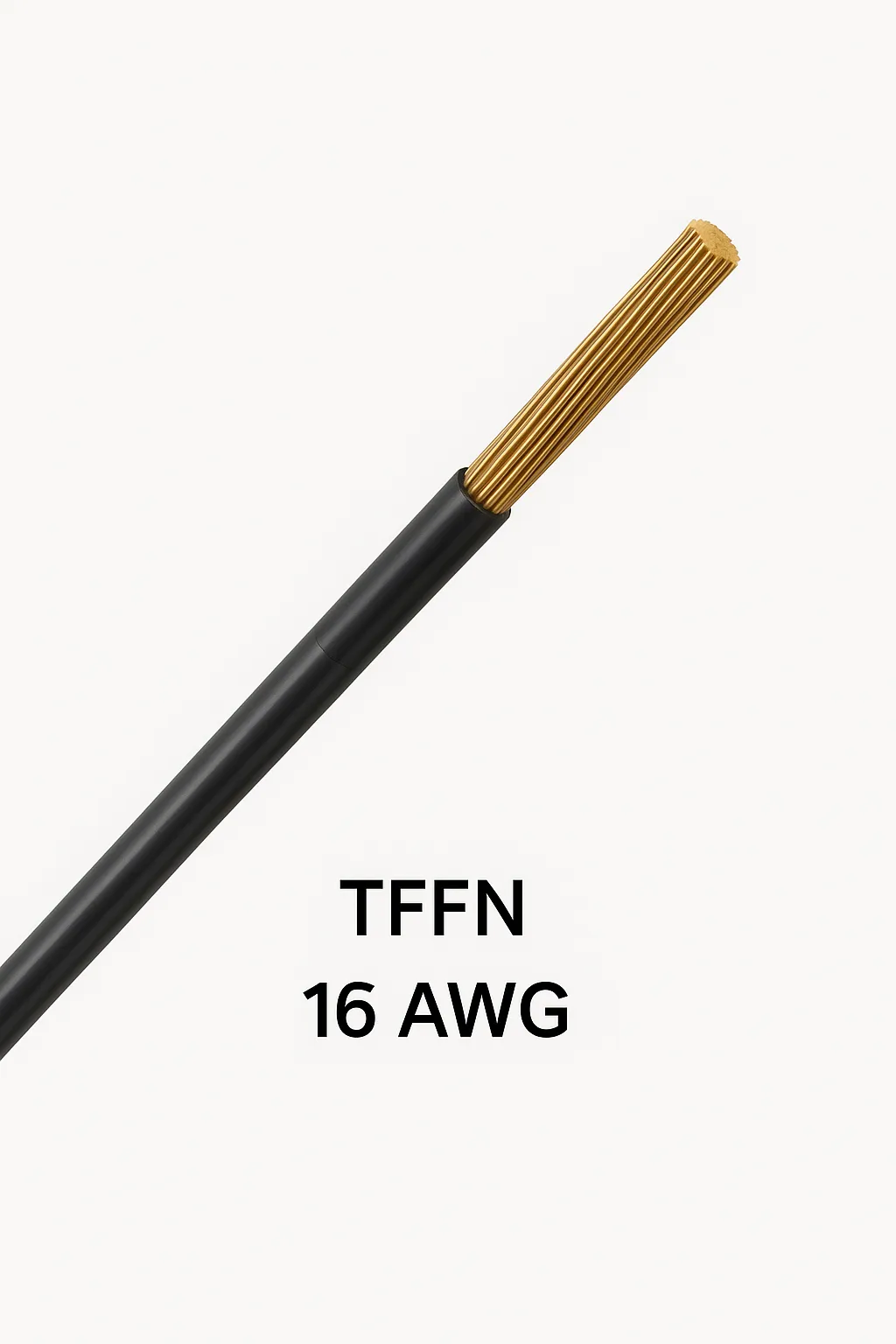

  • Conductor: Stranded copper (16 or 18 AWG) for flexibility; solid conductor versions are called TFN (Thermoplastic Fixture Nylon).
  • Insulation: Thin PVC insulation with a nylon jacket for durability and resistance to oil and gas.
  • Flexibility: Highly flexible due to fine-stranded conductors and thinner insulation, ideal for tight spaces.
• THHN Wire:
  • Conductor: Stranded or solid copper, available in a wide range (14 AWG to 1000 MCM).
  • Insulation: Thicker PVC insulation with a nylon jacket, offering superior heat and moisture resistance.
  • Flexibility: Less flexible than TFFN, especially in larger gauges, but robust for long runs in conduits.

The thinner insulation and smaller gauge range of TFFN make it more pliable, while THHN’s thicker insulation supports a broader range of applications.

What Are the Key Ratings and Differences?

The primary differences between TFFN and THHN lie in their ratings and environmental suitability:

• Temperature Rating:
  • TFFN: Rated for 90°C in dry locations; not suitable for wet environments.
  • THHN: Rated for 90°C in dry locations and 75°C in wet locations (dual-rated as THWN for water resistance).
• Voltage Rating: Both are rated for 600 volts, suitable for most low-voltage applications.
• Flexibility: TFFN’s stranded construction and thinner insulation make it more flexible, ideal for intricate wiring. THHN is less flexible but more durable in harsh conditions.
• Gauge Availability: TFFN is limited to 16 and 18 AWG, while THHN ranges from 14 AWG to 1000 MCM, accommodating higher current loads.
• Certifications: TFFN complies with UL 62 (fixture wire), while THHN meets UL 83 (building wire).

THHN’s ability to handle wet environments and higher currents makes it more versatile, while TFFN excels in dry, flexible applications.

What Are the Applications of TFFN and THHN?

TFFN and THHN serve distinct purposes based on their properties:

• TFFN Applications:
  • Fixture Wiring: Ideal for lighting fixtures and appliances due to its flexibility and NEC designation as fixture wire.
  • Control Circuits: Used in tight spaces for connecting sensors, relays, or switches in control panels.
  • Machine Tools: Suitable for internal wiring in machinery where flexibility is needed.
• THHN Applications:
  • Building Wiring: Widely used in residential, commercial, and industrial buildings for branch circuits, service entrances, and conduit systems.
  • Appliances and Machine Tools: Handles higher currents in heavy appliances or industrial equipment.
  • Welding Systems: Larger gauges (e.g., 6 AWG THHN) can be used in welding setups for power delivery, similar to welding cables.
  • Outdoor Installations: Dual-rated THHN/THWN is suitable for wet environments like underground conduits.

TFFN is specialized for dry, flexible applications, while THHN’s versatility supports a broader range, including high-current tasks like those in 4-core or welding cables.

Single-Core and Multi-Core Configurations

Both TFFN and THHN are typically single-core wires, but they can be bundled into multi-core cables (e.g., 4-core cables) for specific applications:

• Single-Core Use: TFFN (16 or 18 AWG) is often used individually for fixture or control wiring, while THHN (e.g., 6 AWG) is used for high-current single circuits, such as welding or branch circuits.
• Multi-Core Cables: In applications like three-phase power distribution or control systems, THHN conductors are commonly bundled into 4-core cables, with each core insulated for phase, neutral, or ground. TFFN is less common in multi-core setups due to its limited gauge range but can be used in control cables requiring flexibility.
• Welding Relevance: Welding cables (often 4 AWG or 6 AWG) are typically single-core for flexibility, but THHN’s heat resistance makes it a viable alternative in fixed welding setups, unlike TFFN, which lacks wet-location suitability.

For example, a 4-core THHN cable might be used in a three-phase industrial setup, with each core sized at 6 AWG to handle 55-65 amps, while TFFN’s smaller gauges limit it to low-current control tasks.

TFFN vs. THHN Comparison Table

The following table summarizes the key differences between TFFN and THHN wires:

Note: Always verify ratings with the NEC or a professional electrician for specific applications.

Safety Tips for Selecting and Using Wires

Choosing between TFFN and THHN requires careful consideration of the application and environment:

• Match Wire to Environment: Use THHN for wet or outdoor applications; restrict TFFN to dry, indoor settings.
• Size for Current Load: Ensure the wire gauge (e.g., 6 AWG THHN for 55-65 amps) matches the circuit’s amperage to prevent overheating.
• Use Proper Conduits: Both wires require conduits or raceways per NEC, with TFFN needing sufficient space to avoid insulation damage.
• Check Insulation Integrity: Inspect for cuts or abrasions, especially for TFFN, which has thinner insulation.
• Comply with Codes: Follow NEC and local regulations for wire type, gauge, and installation practices.
• Professional Installation: For complex setups (e.g., 4-core THHN cables or welding systems), hire a licensed electrician.

Regular inspections and proper connections minimize risks like short circuits or fires.

Conclusion

TFFN and THHN wires are essential building wires with distinct strengths: TFFN’s flexibility suits fixture and control wiring in dry environments, while THHN’s heat resistance and gauge versatility make it ideal for general-purpose wiring, including high-current applications like welding or 4-core power cables. By understanding their construction, ratings, and applications, you can choose the right wire for safe and efficient electrical installations. Consult a professional electrician to ensure compliance with NEC standards.
