Choosing Teflon Wire: What You Need to Know

What Is Teflon Wire?

Teflon wire refers to electrical wire insulated with fluoropolymers, primarily polytetrafluoroethylene (PTFE), but also fluorinated ethylene propylene (FEP) or perfluoroalkoxy (PFA). Known for its exceptional heat resistance, chemical inertness, and electrical insulation properties, Teflon wire is a high-performance solution for demanding environments. Unlike standard wires with PVC or silicone insulation, Teflon wire excels in extreme temperatures (-65°C to +260°C, with peaks up to 300°C), corrosive conditions, and high-frequency applications. Its durability and reliability make it a preferred choice in industries like aerospace, electronics, and medical devices, though its higher cost requires careful consideration for specific applications.

Key Properties of Teflon Wire

Teflon wire’s unique characteristics set it apart from other insulated wires, making it suitable for challenging conditions:

• High Temperature Resistance: Operates continuously from -65°C to +260°C, with intermittent peaks up to 300°C, ideal for heat-exposed environments like engine compartments or industrial ovens.
• Chemical Inertness: Resists oils, acids, solvents, and UV radiation, ensuring stability in corrosive settings, such as chemical plants or fuel cells.
• Electrical Insulation: High dielectric strength and low loss tangent minimize signal loss, making it perfect for high-frequency electronics and telecommunications.
• Durability: Withstands mechanical stress, abrasion, and over 50,000 flex cycles without cracking, outperforming PVC in longevity.
• Non-Stick and Low Friction: PTFE’s non-stick surface reduces dust adhesion and friction, extending service life in moving parts.
• Fire Resistance: Self-extinguishing (UL 94 V-0 rated) with minimal smoke emissions, enhancing safety in confined spaces, unlike PVC, which can ignite.

These properties make Teflon wire a robust choice, though its thinner insulation and higher cost compared to PVC require careful application matching.

Types of Teflon Wire Insulation

Teflon wire comes in several fluoropolymer variants, each with specific strengths:

• PTFE (Polytetrafluoroethylene): The most common Teflon insulation, offering the highest temperature rating (up to 260°C continuous, 300°C intermittent) and excellent chemical resistance. Used in aerospace and high-frequency electronics.
• FEP (Fluorinated Ethylene Propylene): Provides a slightly lower temperature rating (up to 200°C) but greater flexibility and smoother surfaces, reducing friction. Ideal for applications requiring repeated bending, like robotics.
• PFA (Perfluoroalkoxy): Balances PTFE’s heat resistance (up to 250°C) with improved flexibility and melt processability, suitable for medical devices and telecommunications.

Conductors in Teflon wire are typically tinned copper, silver-plated copper, or nickel-plated copper, enhancing conductivity and corrosion resistance, especially in high-frequency or corrosive environments.

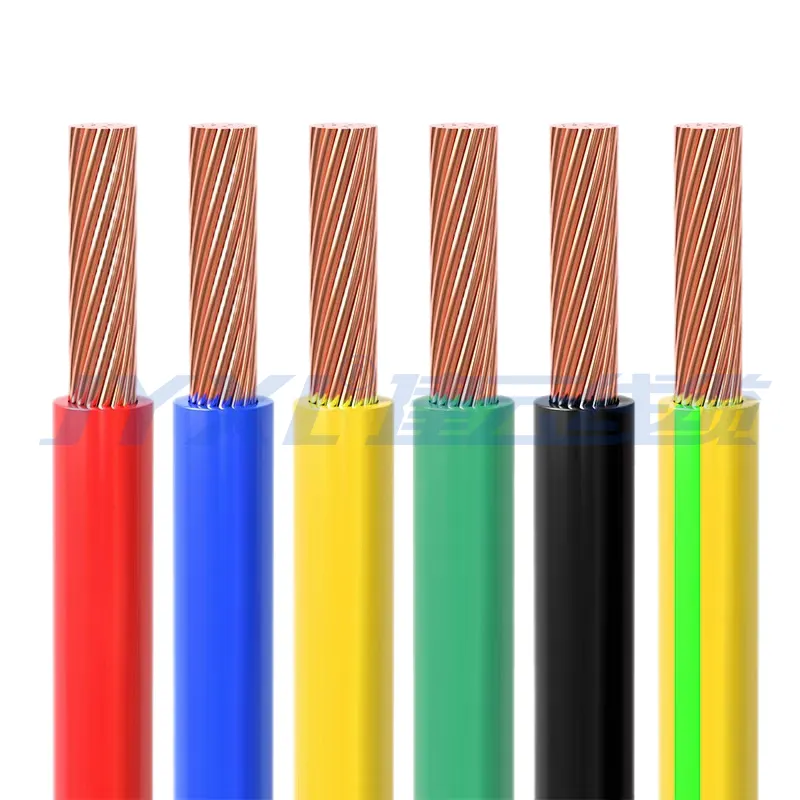

Single-Core and Multi-Core Configurations

Teflon wire is available in single-core and multi-core configurations, similar to other wires like THHN or LSOH discussed previously:

• Single-Core Teflon Wire: Used for straightforward applications, such as internal wiring in appliances or lighting fixtures. A 12 AWG single-core PTFE wire, for example, handles heavy-duty currents in industrial settings, offering durability in high-heat conditions.
• Multi-Core Teflon Wire: Common in complex systems, like 4-core cables for control circuits or aerospace wiring, where multiple signals or power lines are needed. Multi-core Teflon wires maintain flexibility and resist abrasion, unlike stiffer THHN cables.

Unlike TFFN, which is limited to indoor, dry locations, Teflon wire’s chemical and temperature resistance makes it versatile for both indoor and outdoor use, including wet or corrosive environments.

Applications of Teflon Wire

Teflon wire’s robustness suits a wide range of high-performance applications:

• Aerospace and Military: Withstands extreme temperatures and vibrations in aircraft wiring and missile systems, ensuring reliable signal transmission.
• Electronics: Used in high-frequency circuits, such as RF antennas and computer motherboards, due to low signal loss and durability.
• Automotive: Powers navigation, heated seats, and battery systems in vehicles, resisting oils and high engine temperatures.
• Medical Devices: Employed in implants and surgical equipment for its biocompatibility, flexibility, and chemical inertness.
• Industrial Settings: Supports welding stations, chemical plants, and oil/gas instrumentation, where corrosion and heat are prevalent.
• Appliances: Found in ovens, air conditioners, and microwaves, where heat resistance prevents insulation meltdown.

Teflon wire’s versatility contrasts with LSOH cables, which prioritize low smoke for fire safety, or CCS wires, which focus on tensile strength.

Teflon vs. PVC Insulation Comparison Table

Choosing between Teflon and PVC wire depends on application needs. The table below compares their properties:

Note: Teflon’s thinner insulation does not compromise quality but may have lower pressure resistance than PVC in some cases.

Tips for Choosing Teflon Wire

Selecting the right Teflon wire requires careful consideration to ensure safety and performance:

• Assess Environmental Conditions: Choose PTFE for extreme heat (up to 260°C) or corrosive environments; opt for FEP or PFA for applications needing more flexibility. Ensure the wire can handle moisture, oils, or UV exposure if used outdoors.
• Match Gauge to Load: Select appropriate AWG sizes (e.g., 12 AWG for 20-30 amps) to prevent overheating, similar to THHN or MV cables. Refer to NEC guidelines for current ratings.
• Verify Certifications: Look for UL (e.g., UL 1330, UL 3271), RoHS, or MIL-W-22759/32 certifications to ensure quality and compliance, especially for aerospace or medical uses.
• Consider Flexibility Needs: Use stranded conductors (e.g., silver-plated copper) for applications requiring bending, like control circuits, over solid conductors, which are stiffer, like THHN.
• Evaluate Cost vs. Performance: Teflon is more expensive than PVC or silicone, so reserve it for applications where its superior properties are necessary, such as high-heat or chemical exposure.
• Check for Water Exposure: While Teflon is water-resistant, prolonged submersion may lead to aging or leakage risks. Use sealed connectors and avoid unnecessary water exposure.
• Consult Professionals: Work with licensed electricians for complex setups, such as 4-core Teflon cables in aerospace systems, to ensure proper installation and compliance.

These tips help balance Teflon wire’s benefits with project-specific requirements, avoiding over-specification or safety risks.

Conclusion

Teflon wire, with its PTFE, FEP, or PFA insulation, offers unmatched performance in extreme temperatures, corrosive environments, and high-frequency applications. Its heat resistance (-65°C to +260°C), chemical inertness, and durability make it ideal for aerospace, electronics, automotive, and medical applications, far surpassing PVC’s capabilities in demanding settings. Available in single-core and multi-core configurations, like 4-core cables for control systems, Teflon wire provides flexibility and reliability. However, its higher cost and thinner insulation require careful selection based on environmental conditions, certifications, and load requirements. By choosing the right type (PTFE, FEP, or PFA) and following NEC guidelines, you can ensure safe, long-lasting performance. Consult a professional electrician to optimize Teflon wire selection and installation for your project.
