Low Voltage Power Cable Selection Guide: Choosing the Right Type for Your Project

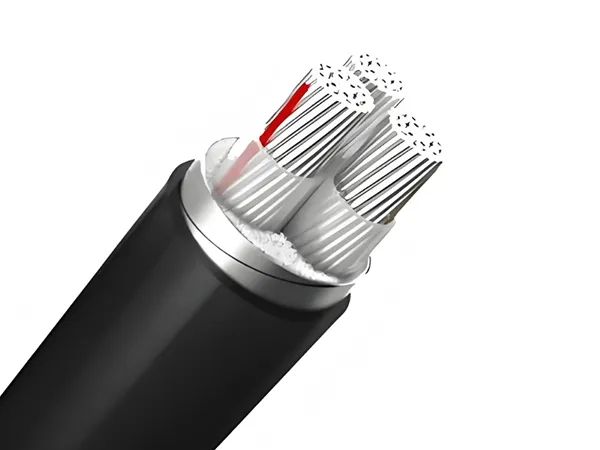

Overview of Low Voltage Power Cables

Low voltage power cables are designed to transmit electrical power at voltages up to 1,000V (1 kV), commonly used in residential, commercial, and industrial applications. These cables ensure safe and efficient power distribution for lighting, appliances, machinery, and other systems. Selecting the right low voltage cable involves evaluating factors such as conductor material, insulation type, environmental conditions, and current requirements. Common cable types include NM-B, THHN/THWN-2, UF-B, and RW90, each suited to specific project needs, as discussed in prior articles on AWG, 4 AWG wire, T90 vs. TW75, and house wiring.

Common Types of Low Voltage Power Cables

Several low voltage power cables are widely used due to their performance and versatility:

• NM-B (Non-Metallic Sheathed Cable): A multi-conductor cable with copper conductors, PVC insulation, and a PVC jacket, used for indoor residential wiring.
• THHN/THWN-2: Single conductors with PVC insulation and a nylon jacket, suitable for conduit installations in dry, damp, or wet locations.
• UF-B (Underground Feeder Cable): A sheathed cable with moisture-resistant insulation, designed for direct burial or outdoor residential applications.
• RW90: Single conductors with XLPE insulation, used in conduit or cable trays for dry or damp locations, common in commercial settings.
• MC (Metal-Clad) Cable: Armored cable with multiple conductors and a metal sheath, used in commercial and industrial environments for added protection.

These cables are selected based on project requirements, as noted in discussions on RW90 vs. RWU90 and Philippine vs. American THHN wires.

Key Factors for Cable Selection

Choosing the right low voltage power cable requires consideration of several factors:

• Current Requirements: Determine the load (in amps) to select the appropriate conductor size (e.g., 12 AWG for 20 amps, 4 AWG for 95 amps copper).
• Conductor Material: Copper offers high conductivity; aluminum is cost-effective for larger sizes but has lower ampacity.
• Insulation Type: Select insulation based on environmental conditions (e.g., PVC for dry locations, XLPE for wet or high-temperature areas).
• Environmental Conditions: Consider moisture, UV exposure, temperature, and chemical exposure for outdoor or industrial applications.
• Installation Method: Choose cables for conduit, direct burial, or exposed runs, affecting flexibility and protection needs.
• Voltage Rating: Ensure the cable’s voltage rating (typically 600V or 1,000V) matches the system.
• Cost: Balance performance with budget, as aluminum or NM-B cables are often more affordable.

These factors guide cable selection, aligning with discussions on 4 AWG wire and XHHW vs. XLPE.

Properties of Common Low Voltage Cables

Each low voltage cable type has specific properties suited to different applications:

• NM-B:
  • Conductor: Copper, typically 14 AWG to 6 AWG.
  • Insulation: PVC with a PVC jacket.
  • Voltage Rating: 600V.
  • Temperature Rating: 90°C in dry locations.
  • Environmental Suitability: Indoor, dry locations.
• THHN/THWN-2:
  • Conductor: Copper or aluminum, 14 AWG to 1,000 kcmil.
  • Insulation: PVC with nylon jacket; THWN-2 for wet locations.
  • Voltage Rating: 600V.
  • Temperature Rating: 90°C (dry or wet).
  • Environmental Suitability: Dry, damp, wet locations in conduits.
• UF-B:
  • Conductor: Copper, 14 AWG to 6 AWG.
  • Insulation: PVC in a solid, moisture-resistant jacket.
  • Voltage Rating: 600V.
  • Temperature Rating: 90°C.
  • Environmental Suitability: Indoor, outdoor, direct burial.
• RW90:
  • Conductor: Copper or aluminum, 14 AWG to 2,000 kcmil.
  • Insulation: XLPE.
  • Voltage Rating: 600V or 1,000V.
  • Temperature Rating: 90°C (dry or damp).
  • Environmental Suitability: Dry or damp locations, requires conduit for wet areas.
• MC Cable:
  • Conductor: Copper or aluminum, 14 AWG to 1,000 kcmil.
  • Insulation: THHN or XHHW with a metal sheath.
  • Voltage Rating: 600V.
  • Temperature Rating: 90°C.
  • Environmental Suitability: Dry or damp, some types for wet locations.

These properties ensure compatibility with project demands, as discussed in house wiring and medium voltage cable articles.

Applications of Low Voltage Power Cables

Low voltage power cables serve diverse applications, similar to those of T90, RW90, and 4 AWG wires:

• Residential Wiring: NM-B for indoor branch circuits (lighting, outlets); UF-B for outdoor or direct burial to garages; THHN/THWN-2 for conduit runs in basements.
• Commercial Buildings: THHN/THWN-2 or RW90 in conduits for lighting and power distribution; MC cable for protected installations in offices or retail spaces.
• Industrial Facilities: MC cable or RW90 for machinery and control systems, leveraging durability in harsh environments.
• Renewable Energy: THHN/THWN-2 or RW90 for solar or wind system connections, benefiting from XLPE insulation.
• Temporary Power: MC or THHN/THWN-2 for construction sites or events, offering flexibility and protection.

These applications highlight the versatility of low voltage cables across sectors.

Comparison of Low Voltage Power Cables

The table below compares common low voltage power cables:

Tips for Choosing the Right Cable

Selecting the appropriate low voltage power cable ensures safety and efficiency:

• Determine Load Requirements: Match wire size to current (e.g., 12 AWG for 20 amps, 4 AWG for 95 amps copper) using ampacity guidelines, as in 4 AWG wire discussions.
• Choose Conductor Material: Select copper for high conductivity in compact installations; use aluminum for cost savings in larger circuits, as noted in 2 AWG vs. 2/0 AWG articles.
• Assess Environmental Conditions: Use NM-B for dry indoor areas, THHN/THWN-2 or UF-B for wet/outdoor locations, and RW90 for high-temperature settings, per RW90 vs. RWU90 discussions.
• Evaluate Installation Method: Choose NM-B or UF-B for non-conduit runs; select THHN/THWN-2, RW90, or MC for conduit or armored installations, as in RW90 conduit requirements.
• Consider Project Scope: Use NM-B or UF-B for residential projects; opt for RW90 or MC for commercial/industrial applications, as in house wiring articles.
• Balance Cost and Performance: NM-B and aluminum THHN are cost-effective; copper RW90 or MC offers superior durability for critical systems.
• Consult Professionals: Engage electricians to verify cable selection and installation, ensuring reliability, as with T90 or medium voltage cables.

These steps align with selecting reliable cables like THHN, RW90, or XHHW.

Conclusion

Low voltage power cables, such as NM-B, THHN/THWN-2, UF-B, RW90, and MC, are essential for safe and efficient power distribution in residential, commercial, and industrial projects. Each cable type offers unique properties, including conductor materials, insulation types, and environmental suitability, catering to specific project needs. By evaluating load requirements, environmental conditions, installation methods, and cost considerations, users can select the optimal cable, building on discussions of AWG, 4 AWG wire, T90 vs. TW75, RW90 vs. RWU90, XHHW vs. XLPE, Philippine vs. American THHN wires, medium voltage cables, and house wiring. Professional consultation ensures the reliability of low voltage power cable installations, supporting robust electrical systems across various applications.
